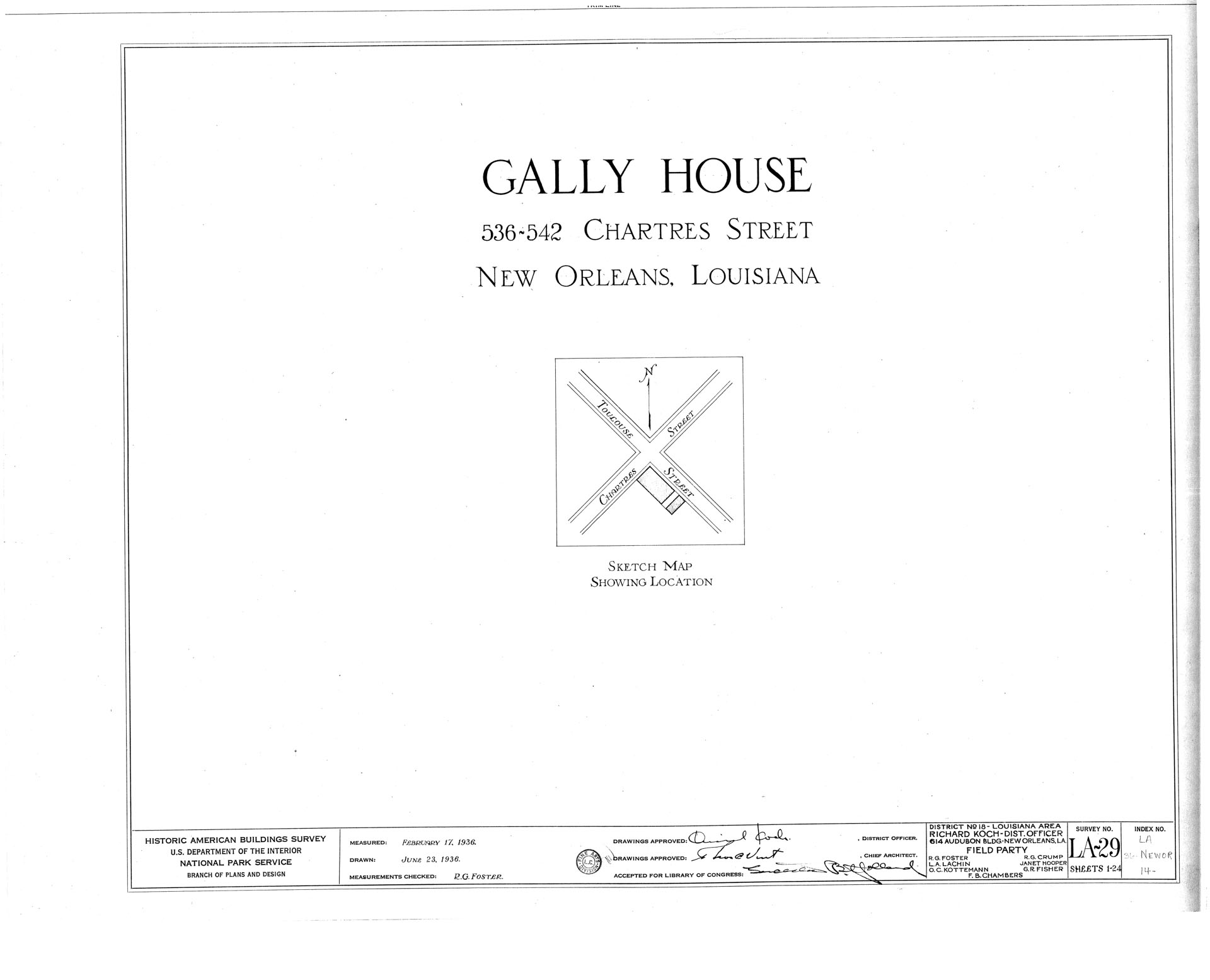

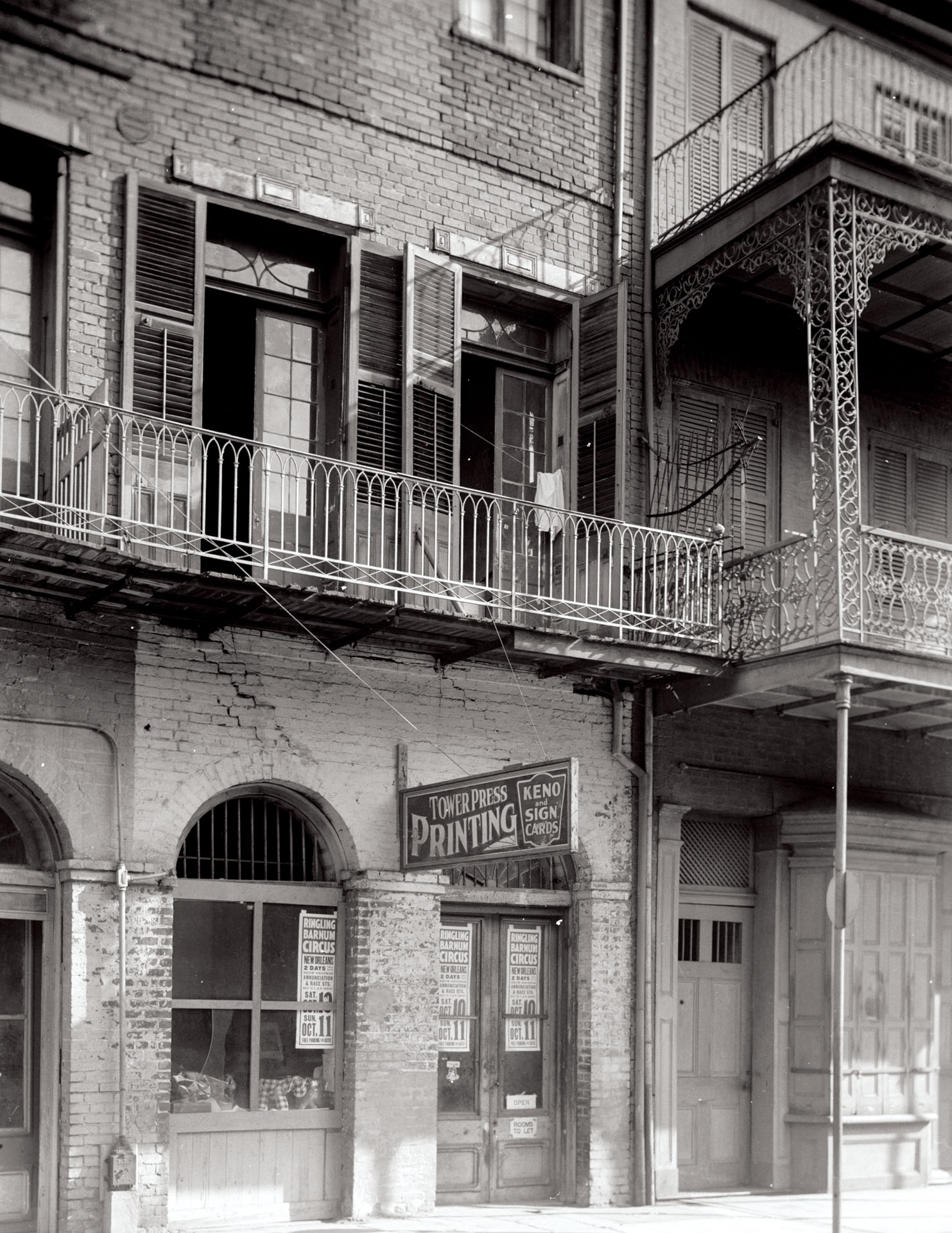

536-542 CHARTRES STREET, NEW ORLEANS, ORLEANS PARISH, LOUISIANA

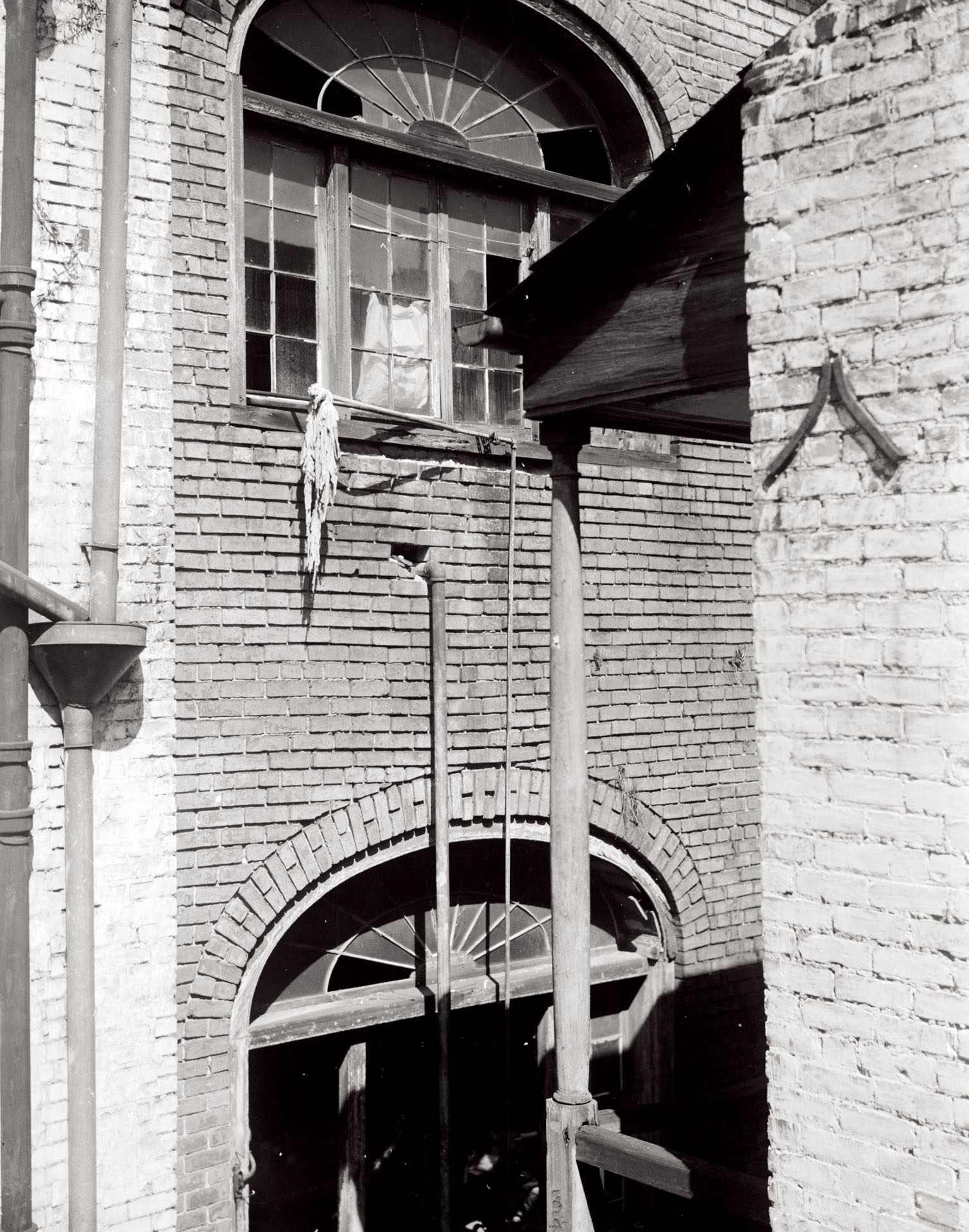

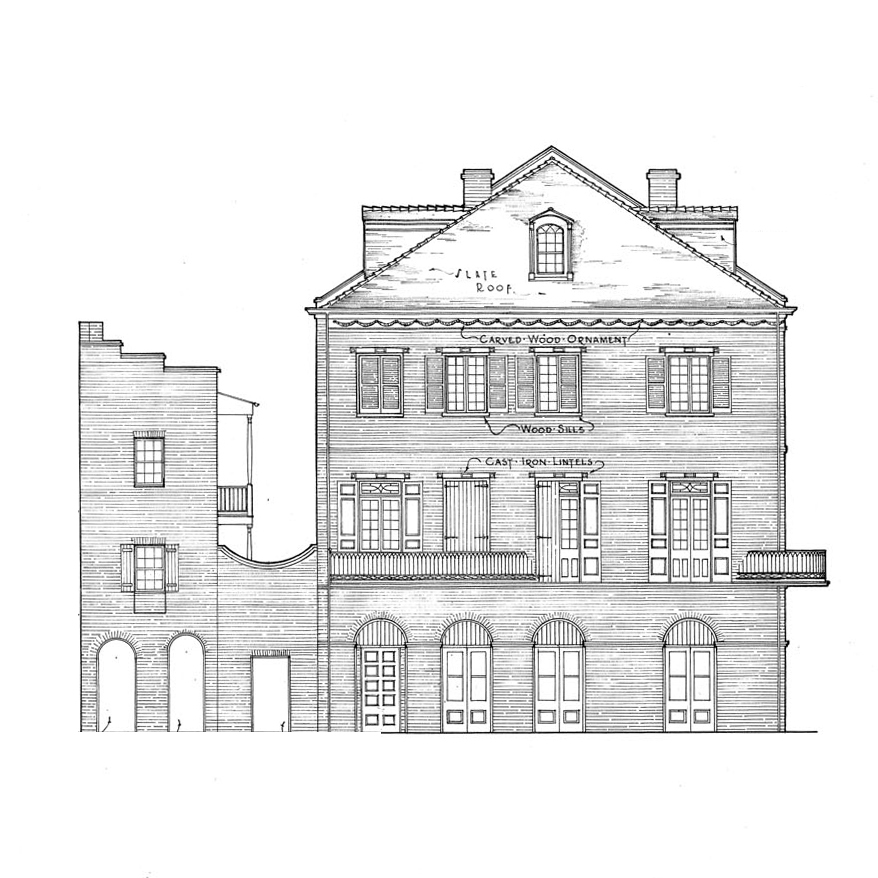

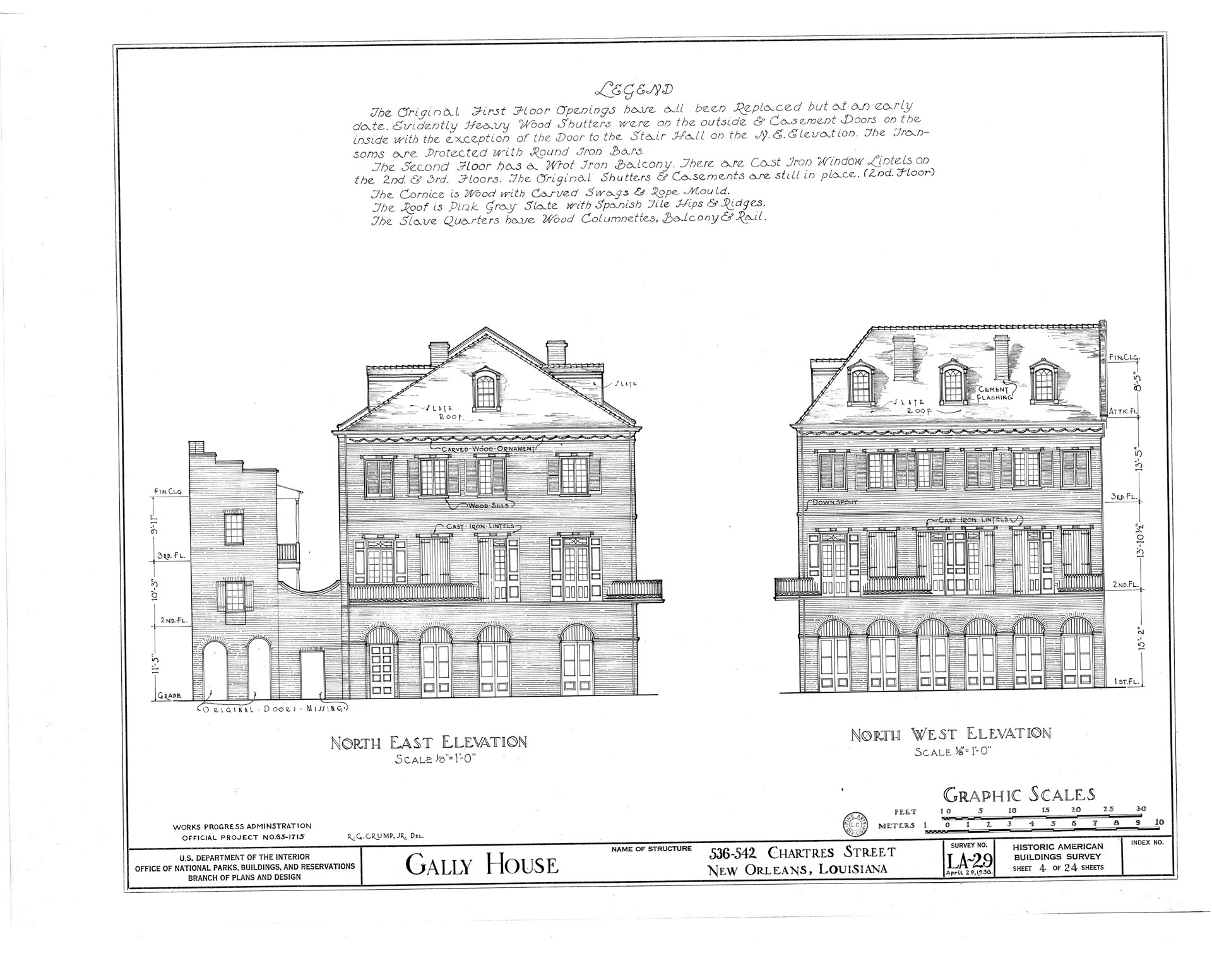

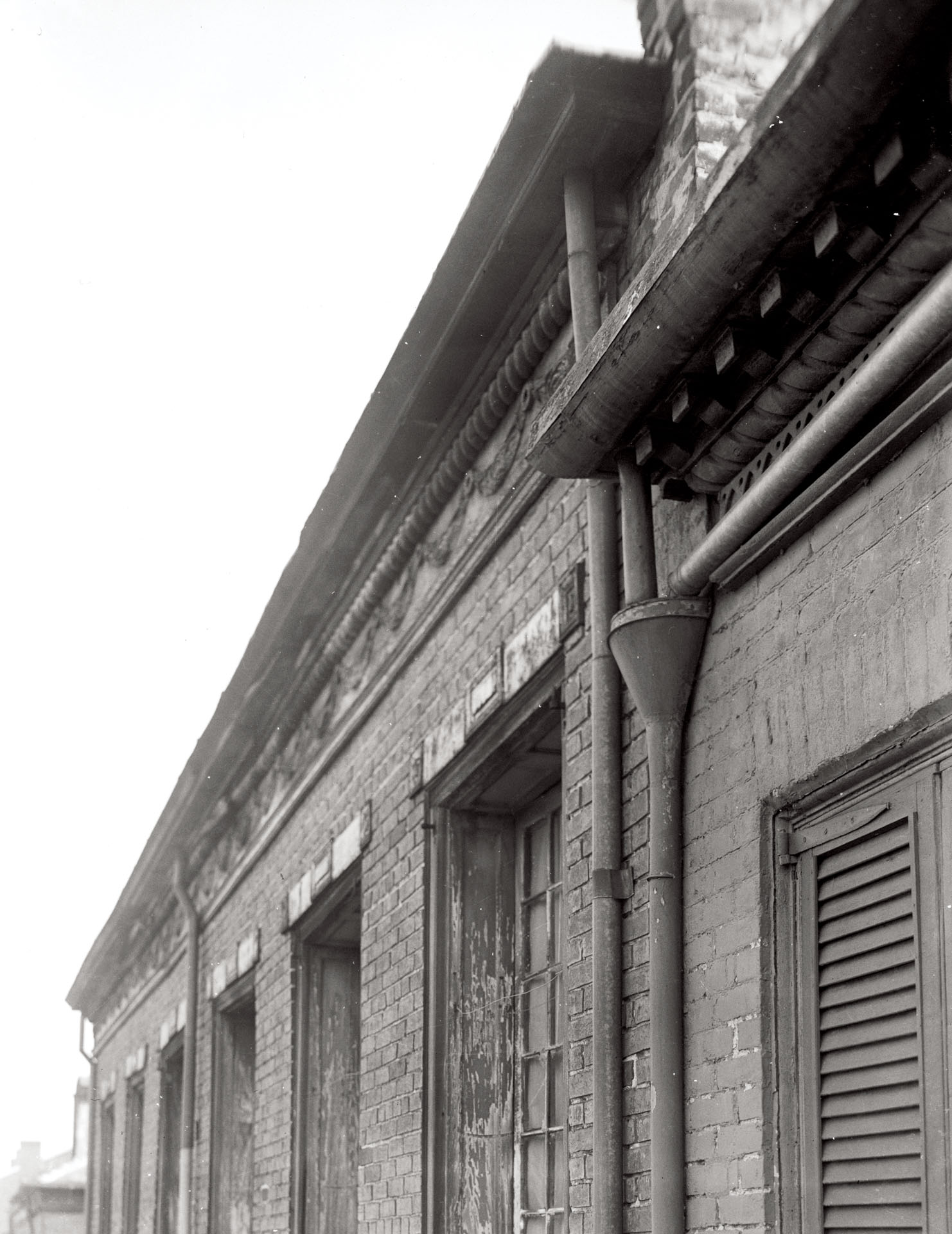

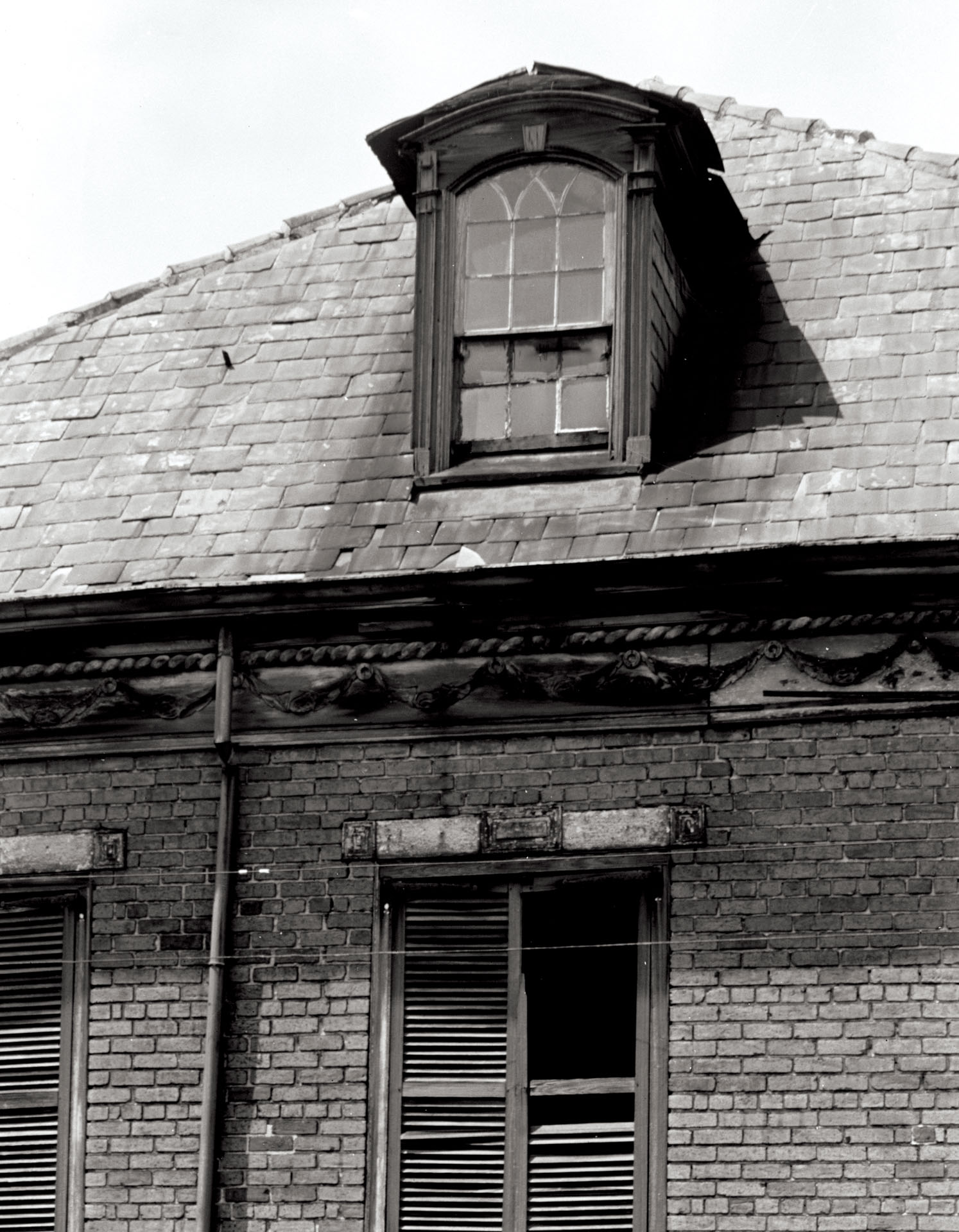

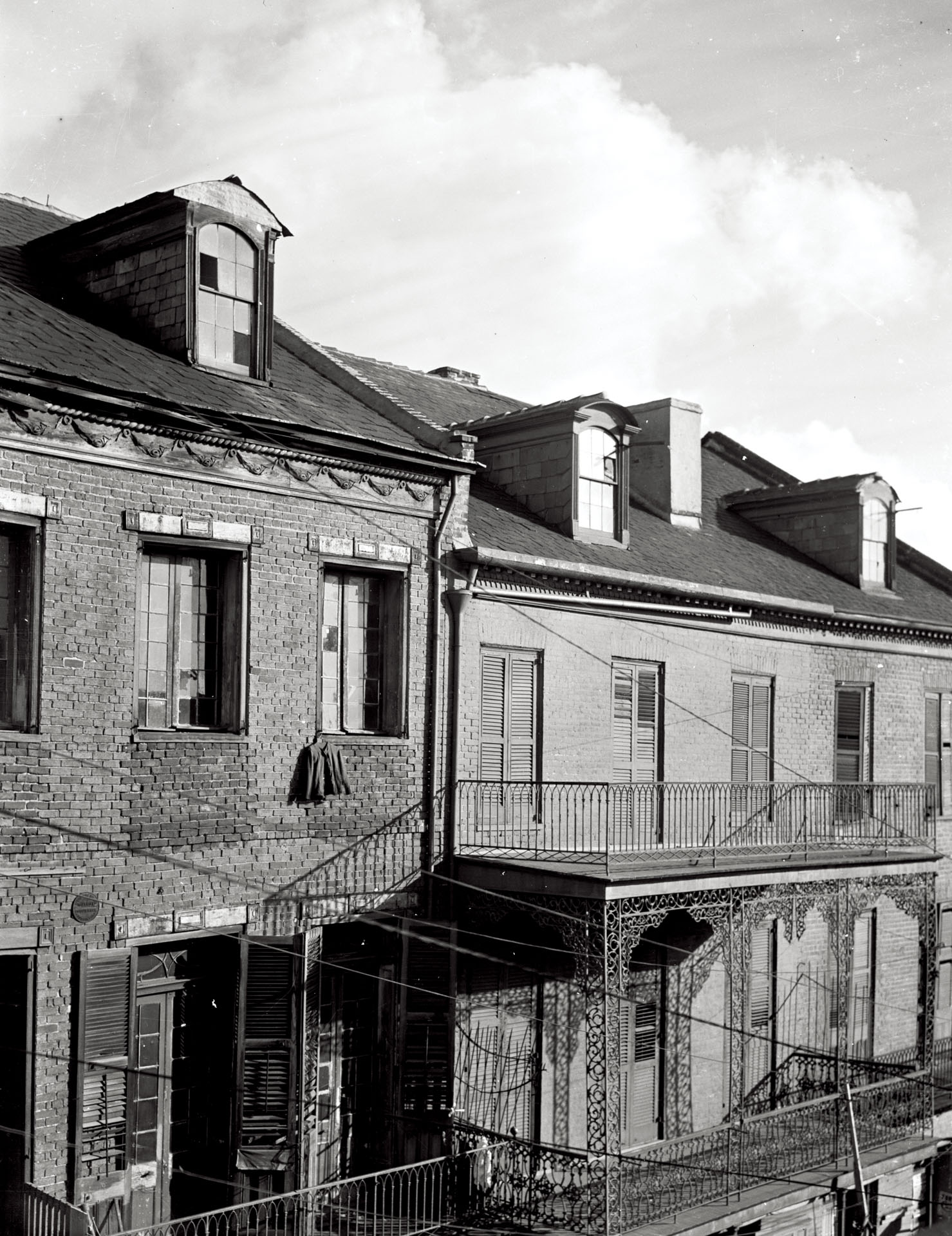

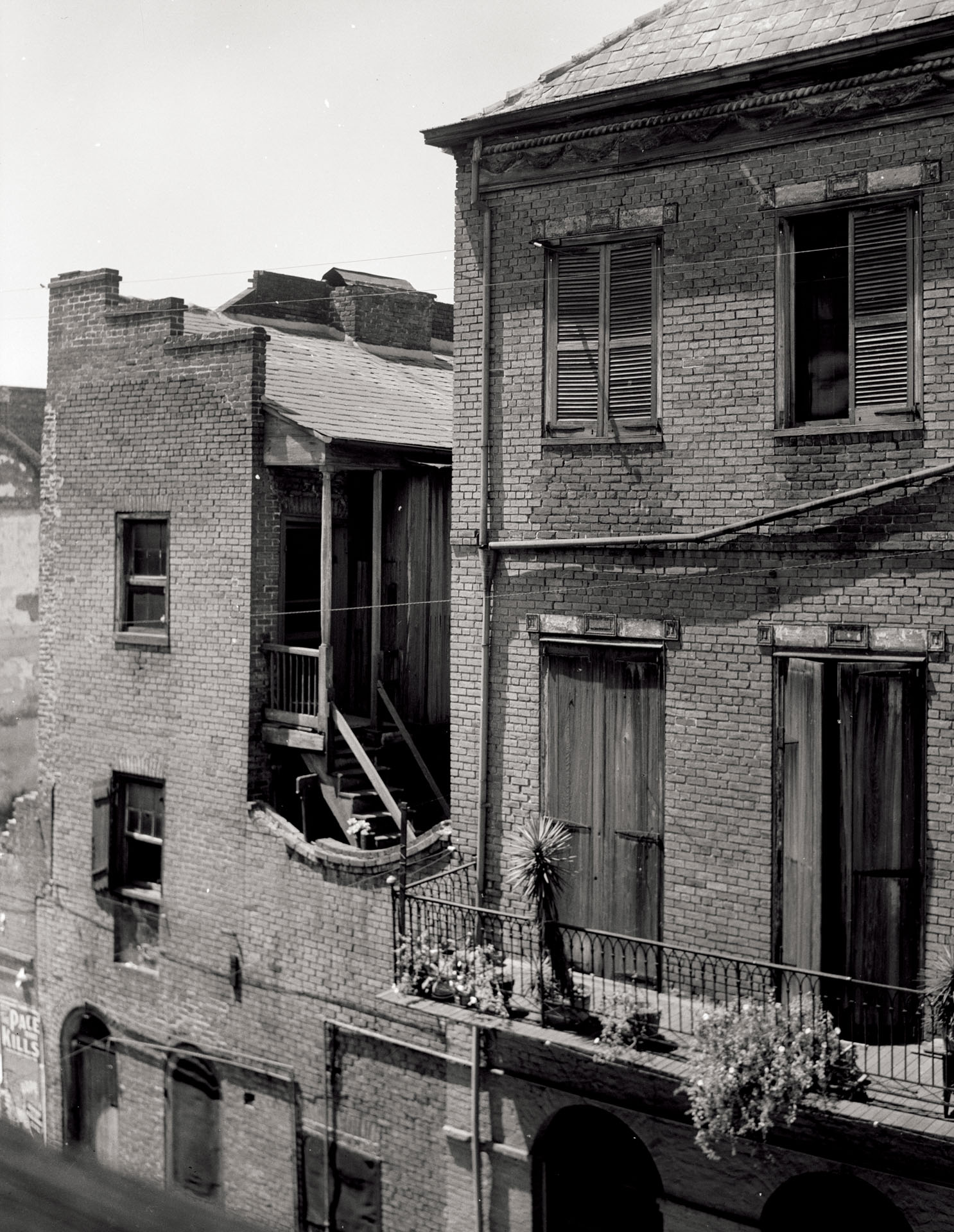

This 3-1/2 story home was designed in 1830 by Gurlie and Guillot for Louis Gally. It is known for its decorative wood cornice with swags and garlands, cast iron lintels, and arched ground floor entrances.
WINDOW NO. 401 ELEVATION

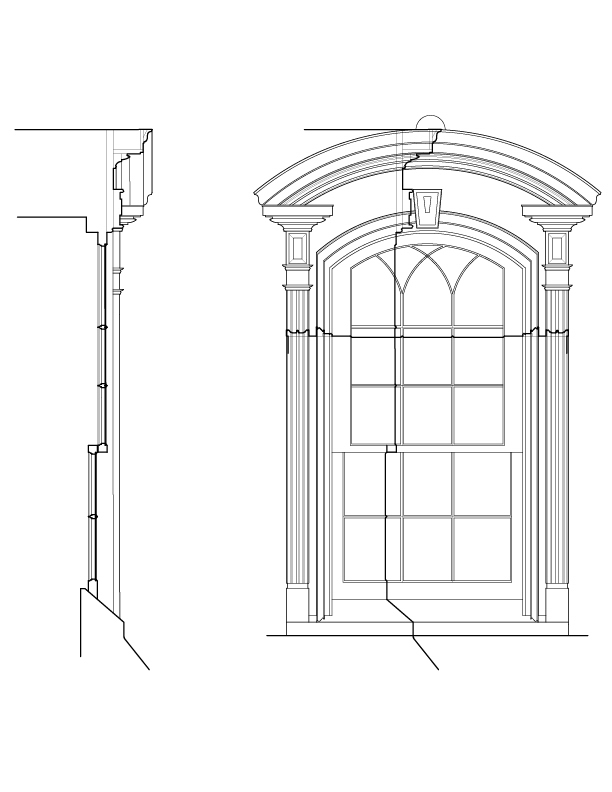

WINDOW NO. 401 ELEVATION AND SECTION

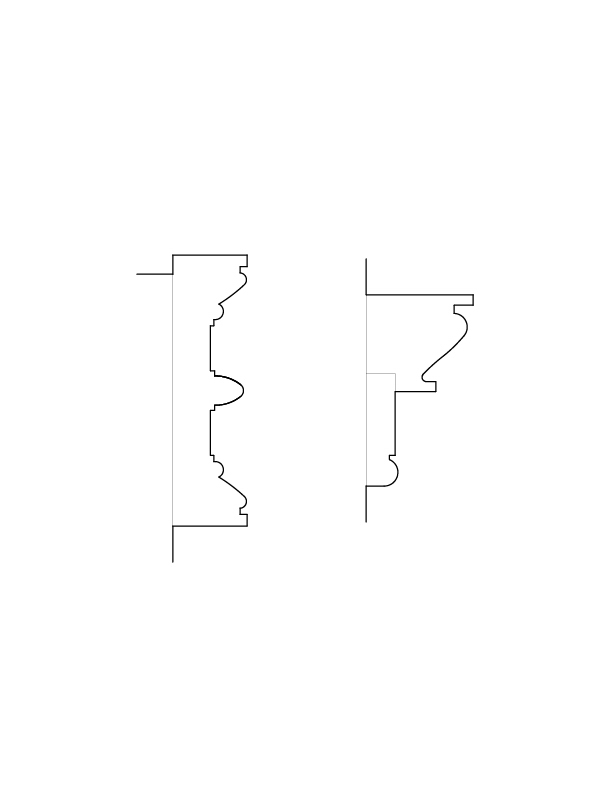

WINDOW NO. 401 MOULDINGS
WINDOW NO. 401 MOULDINGS

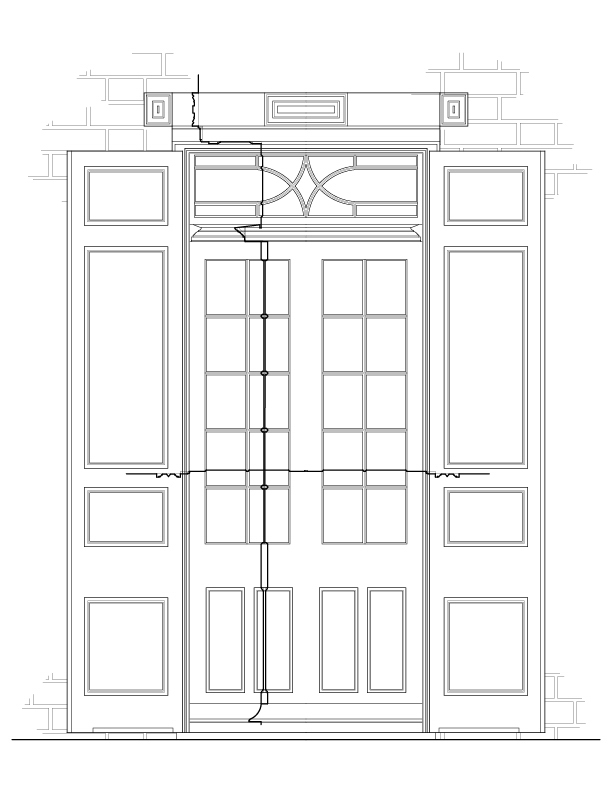

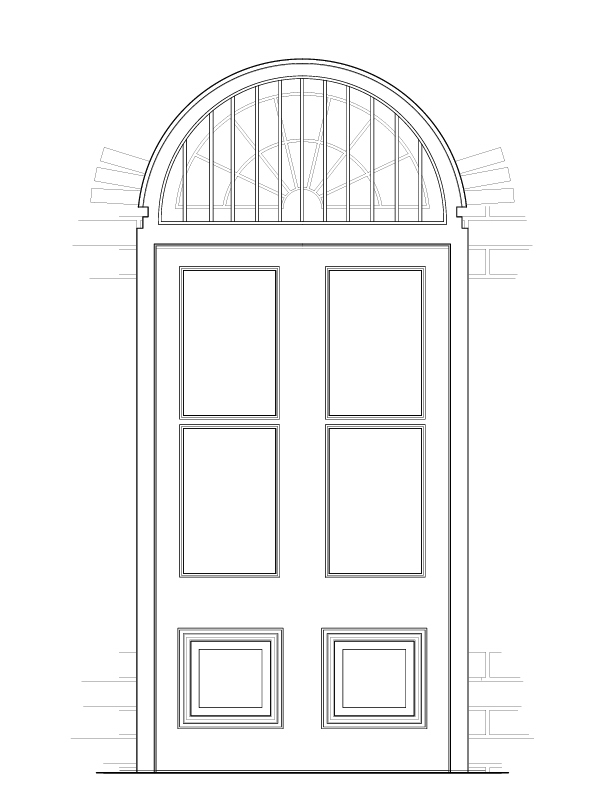

DOOR NO. 101 EXTERIOR ELEVATION
DOOR NO. 101 EXTERIOR ELEVATION

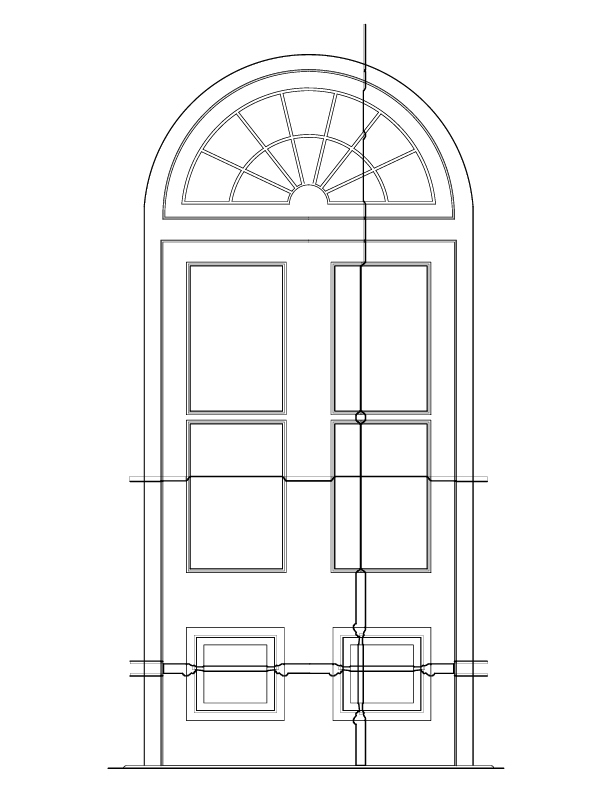

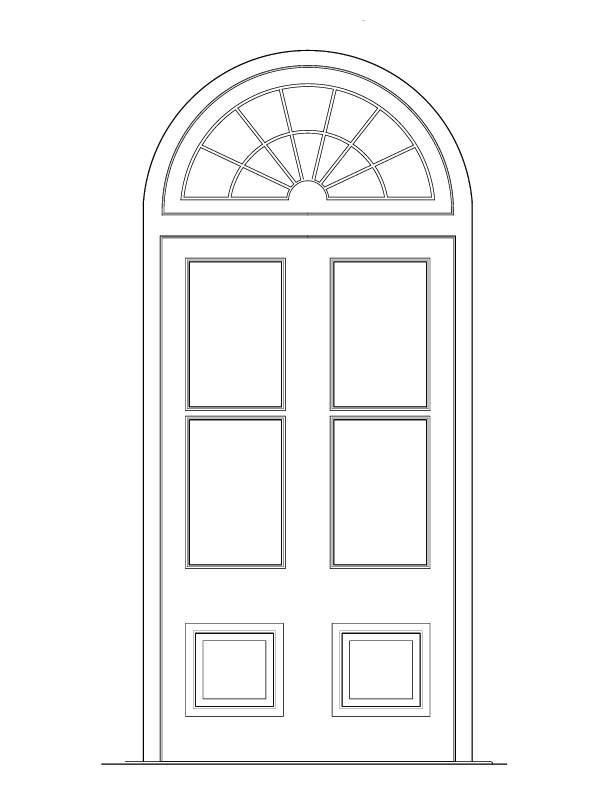

DOOR NO. 101 INTERIOR ELEVATION
DOOR NO. 101 INTERIOR ELEVATION

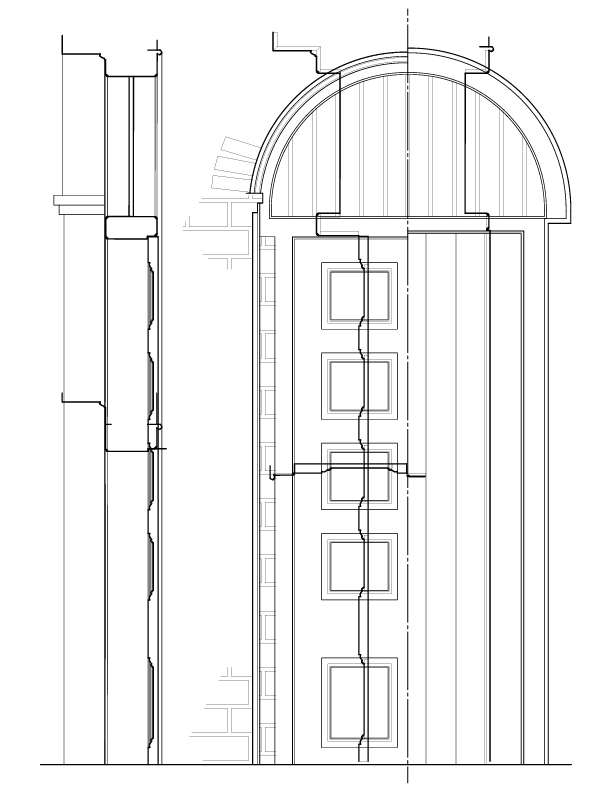

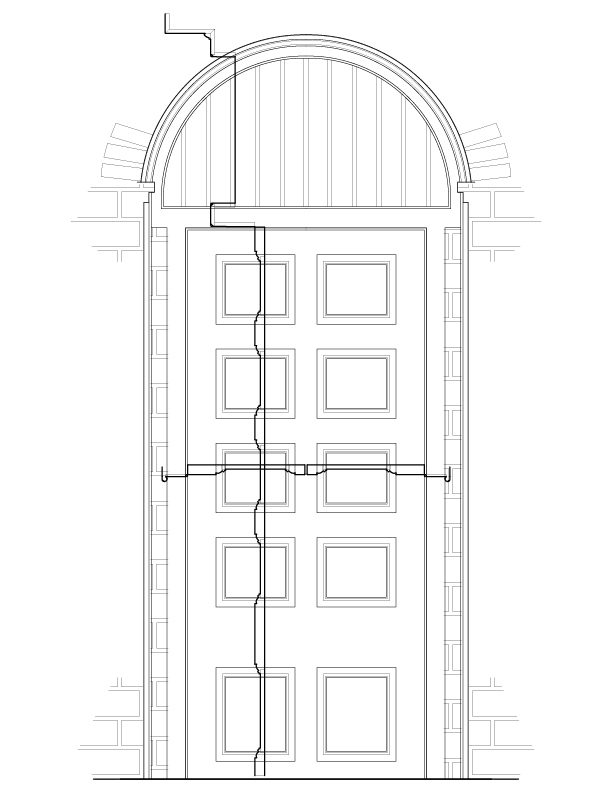

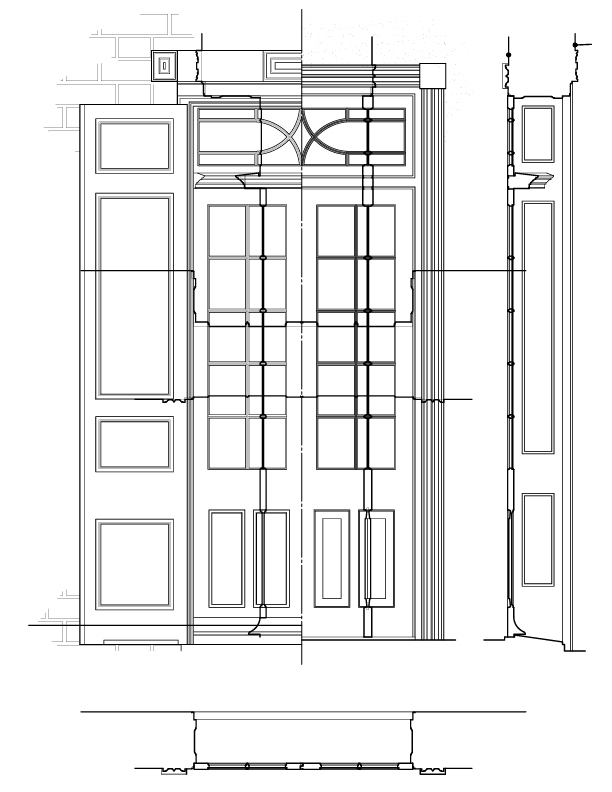

DOOR NO. 101 ELEVATION AND SECTION

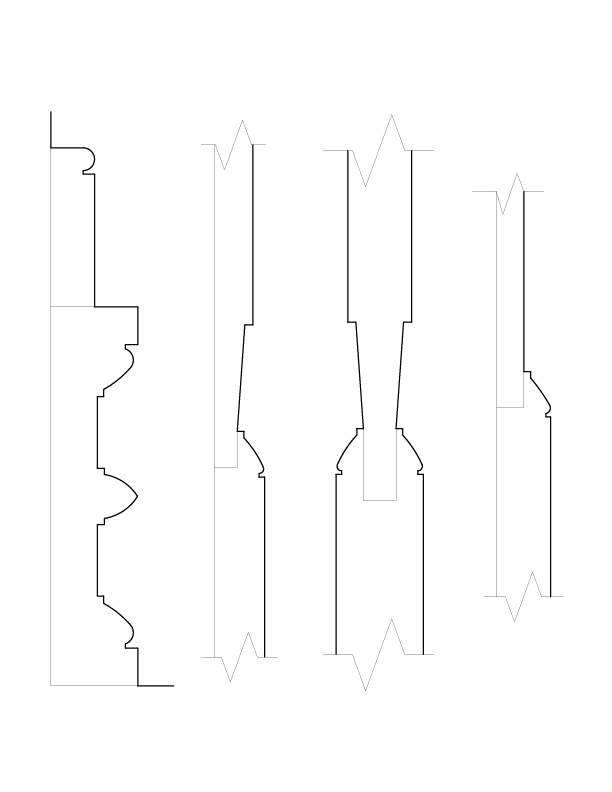

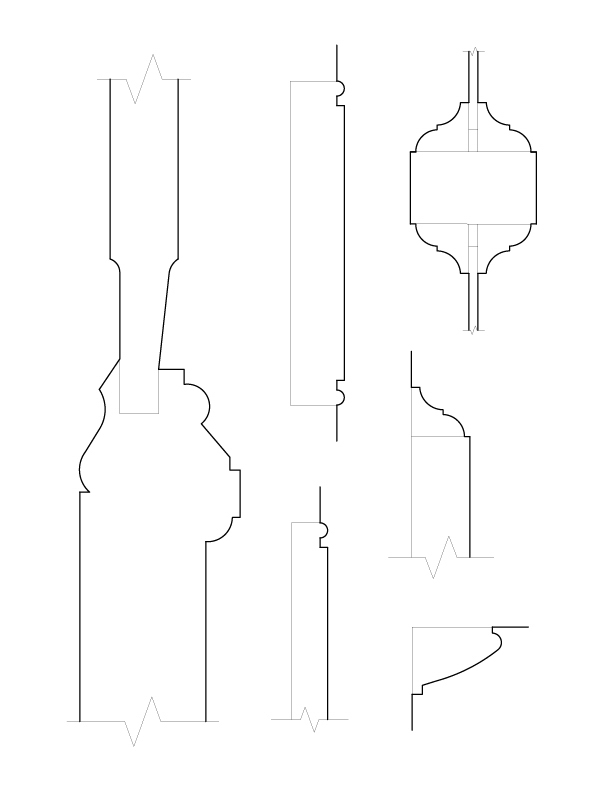

DOOR NO. 101 MOULDINGS

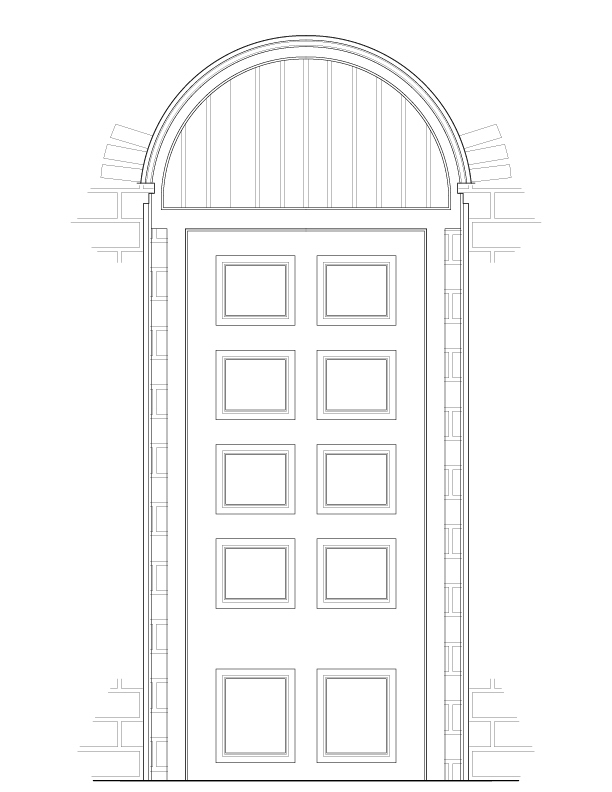

DOOR NO. 101A EXTERIOR ELEVATION
DOOR NO. 101A EXTERIOR ELEVATION

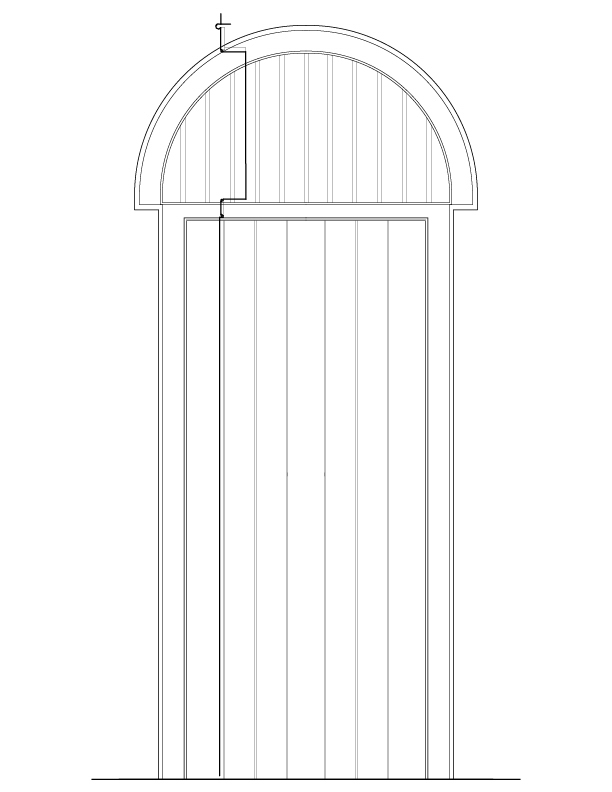

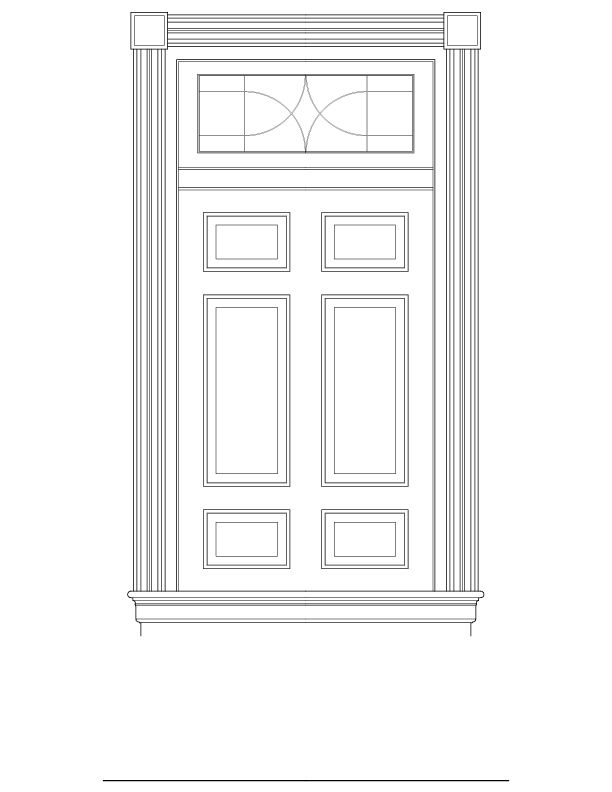

DOOR NO. 101A INTERIOR ELEVATION
DOOR NO. 101A INTERIOR ELEVATION
DOOR NO. 101A ELEVATION AND SECTION
DOOR NO. 101A MOULDINGS

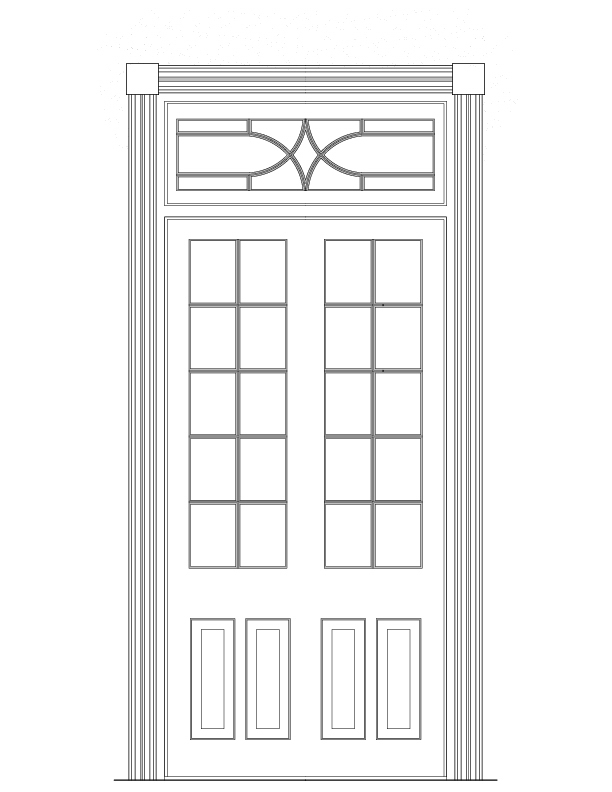

DOOR NO. 201 EXTERIOR ELEVATION
DOOR NO. 201 EXTERIOR ELEVATION
DOOR NO. 201 INTERIOR ELEVATION
DOOR NO. 201 INTERIOR ELEVATION

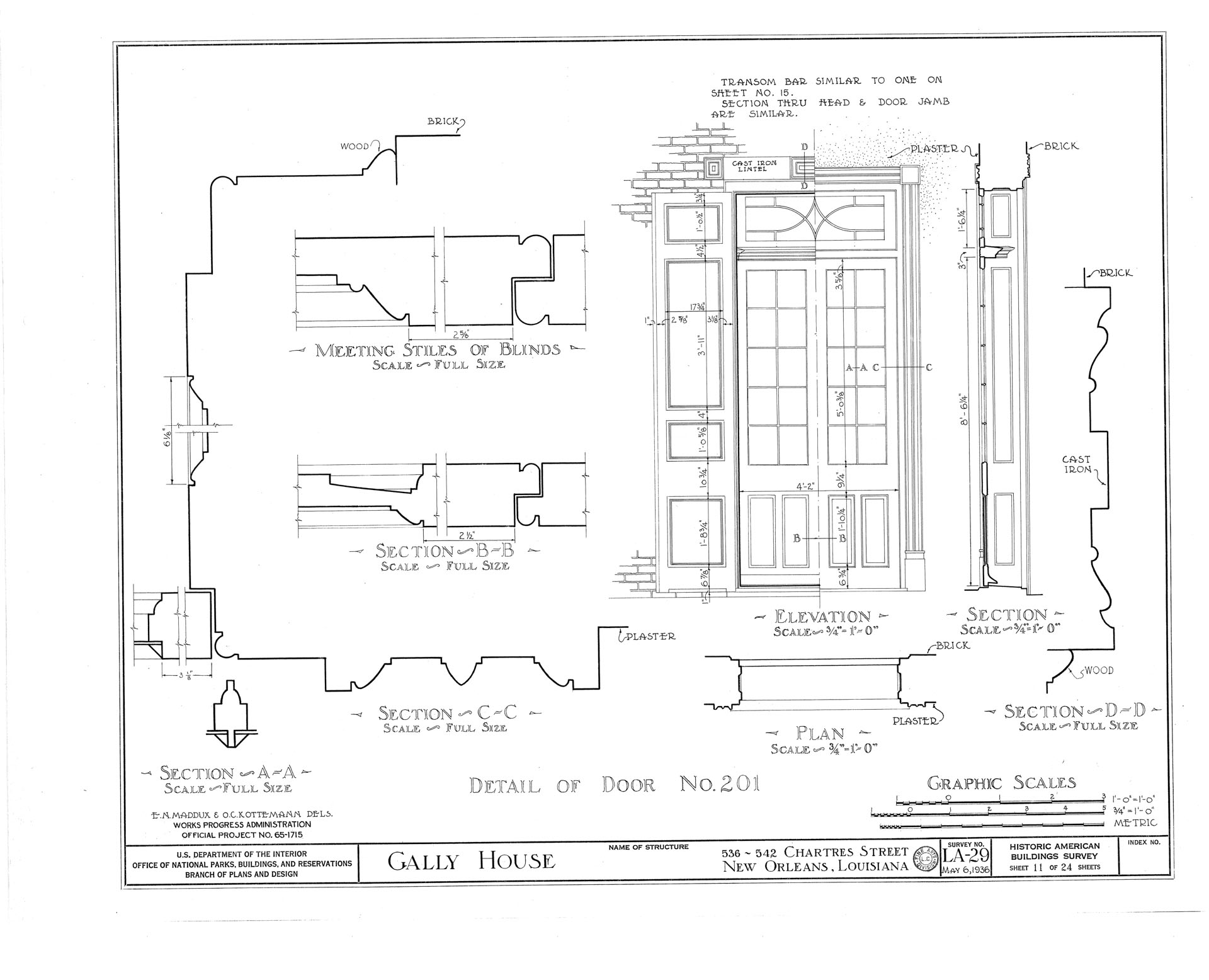

DOOR NO. 201 ELEVATION AND SECTION

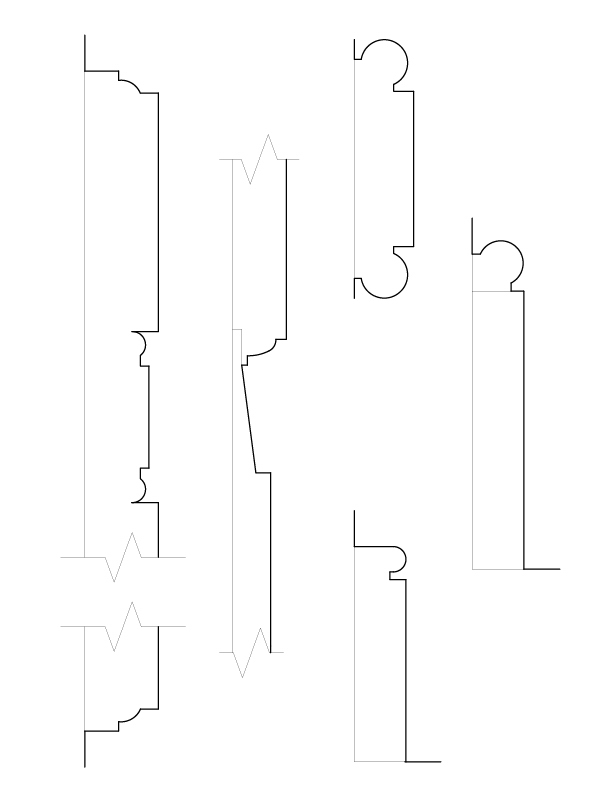

DOOR NO. 201 MOULDINGS
DOOR NO. 201 MOULDINGS
WINDOW NO. 202 ELEVATION
WINDOW NO. 202 ELEVATION

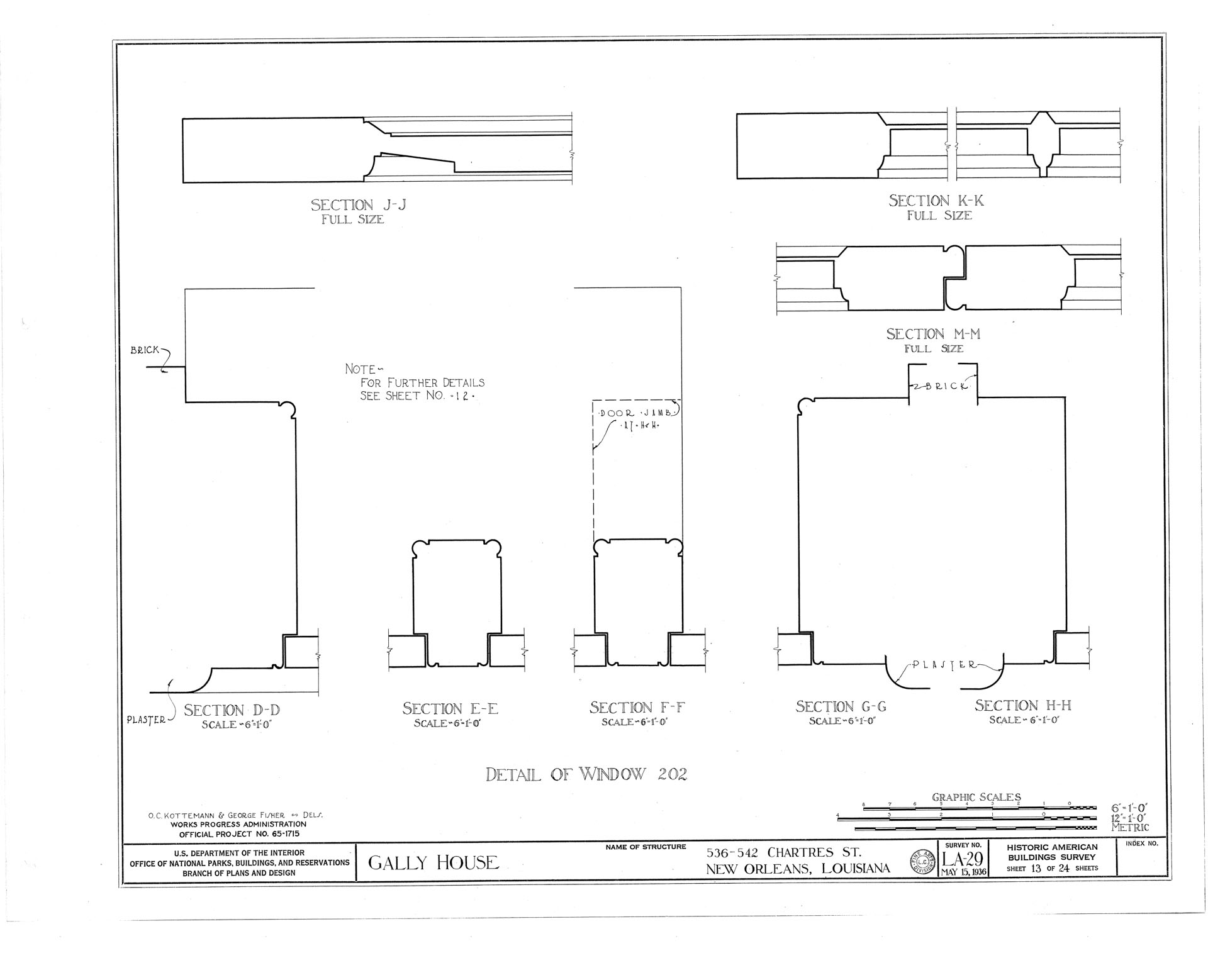

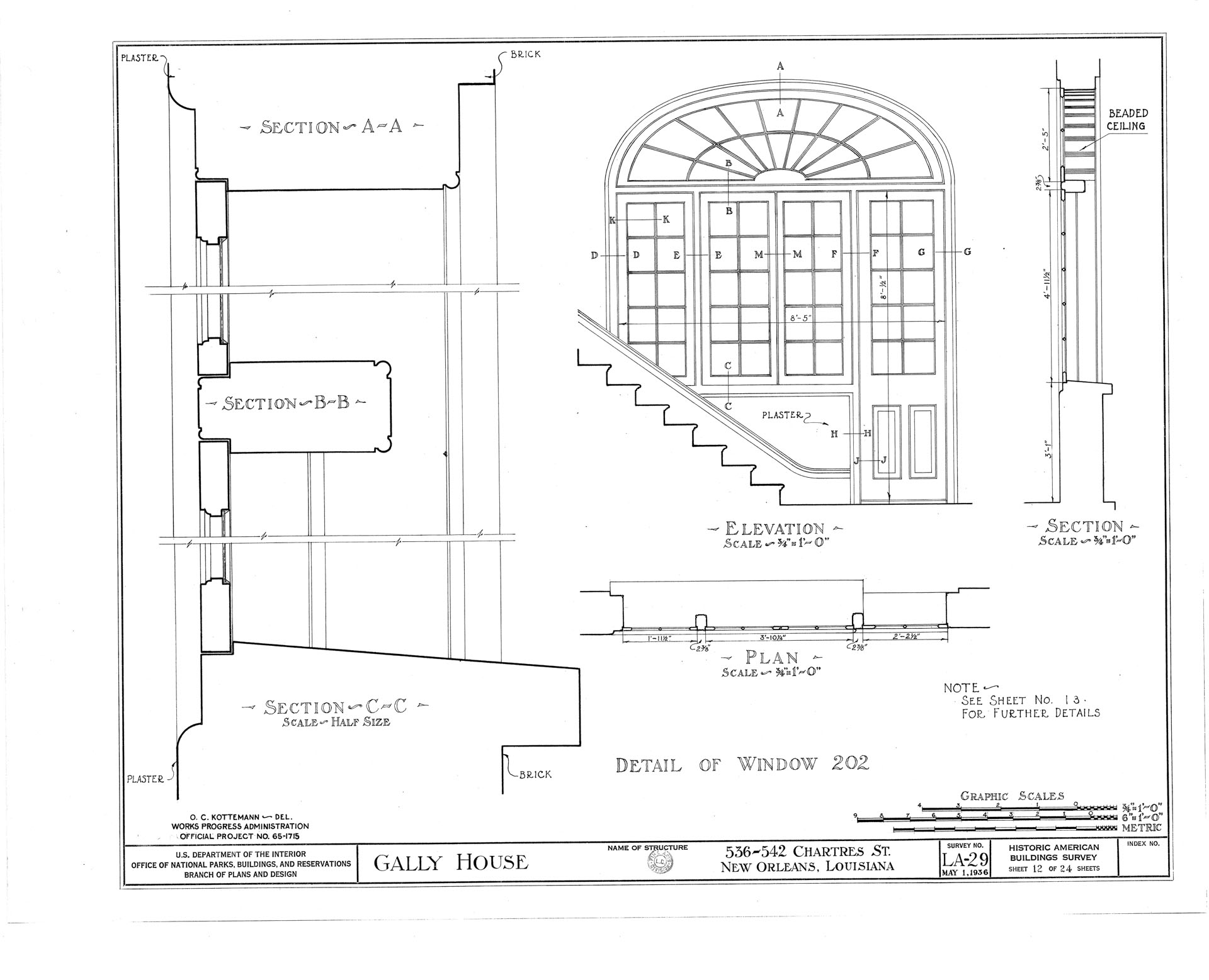

WINDOW NO. 202 ELEVATION AND SECTION
WINDOW NO. 202 MOULDINGS

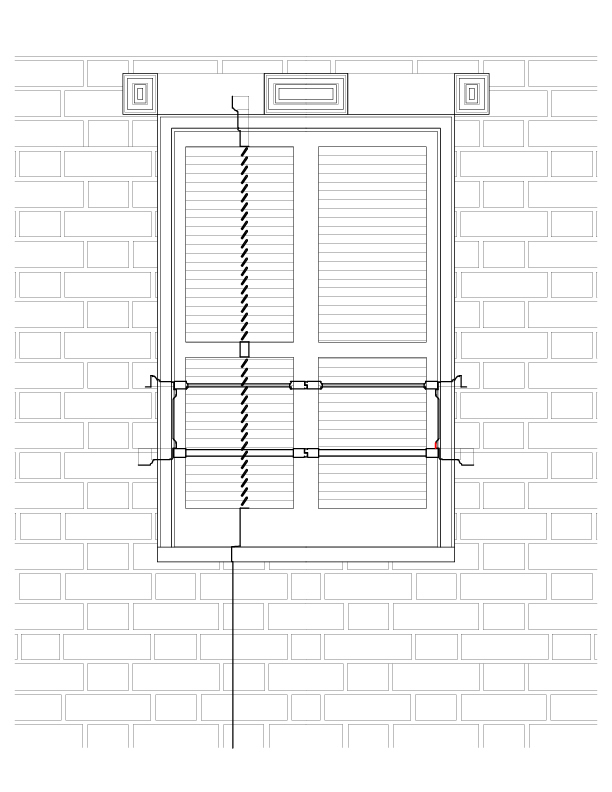

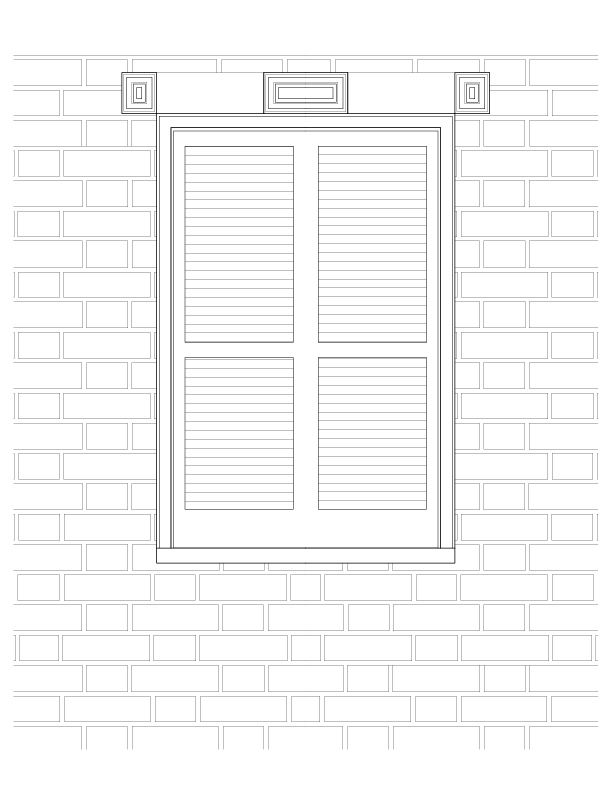

WINDOW NO. 205 EXTERIOR ELEVATION
WINDOW NO. 205 EXTERIOR ELEVATION
WINDOW NO. 205 INTERIOR ELEVATION
WINDOW NO. 205 INTERIOR ELEVATION

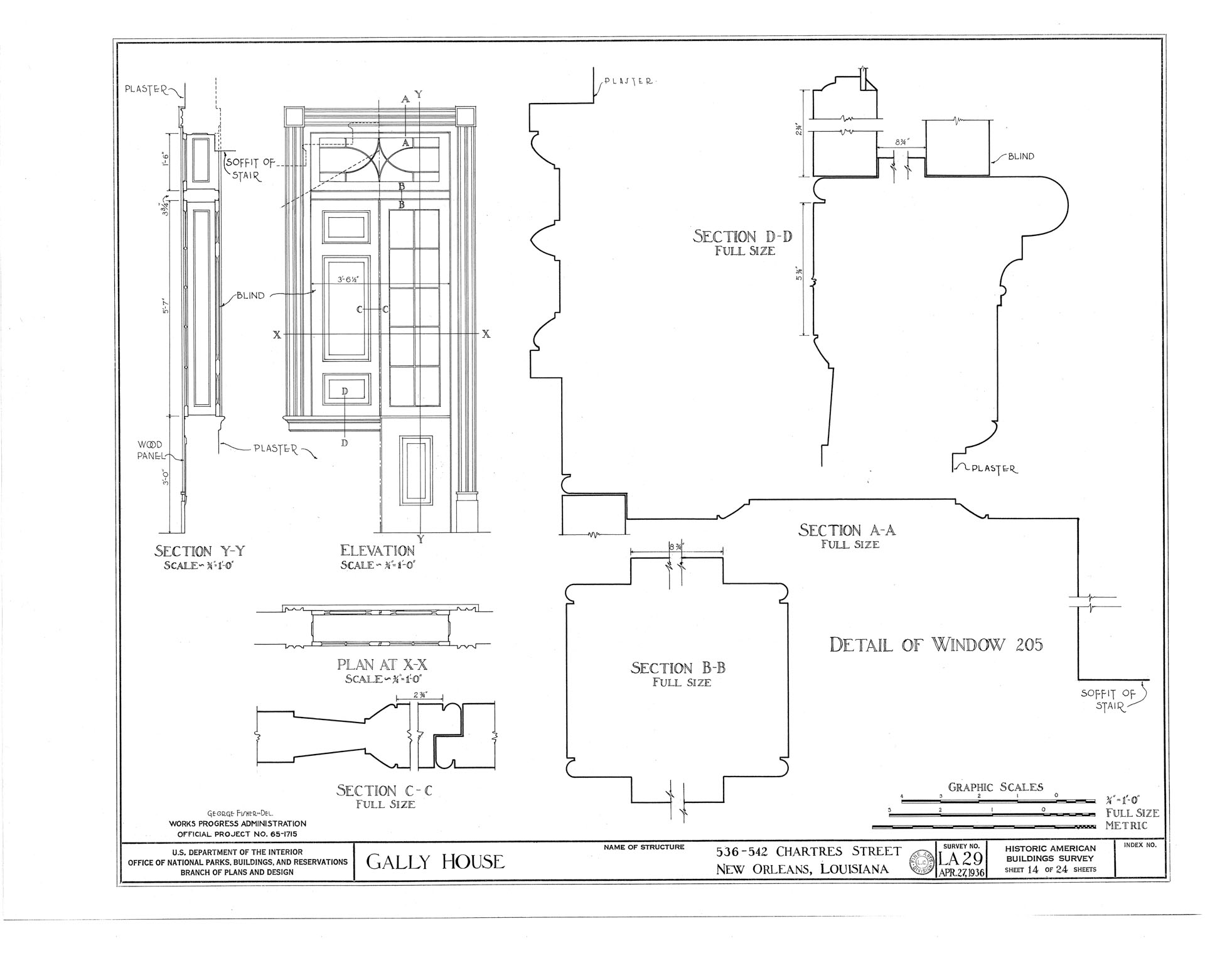

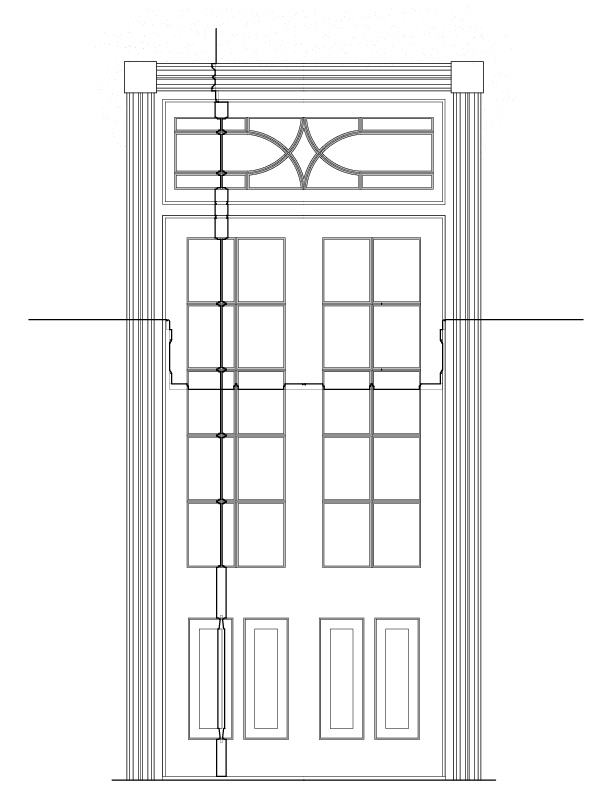

WINDOW NO. 205 ELEVATION AND SECTION
WINDOW NO. 205 MOULDINGS
WINDOW NO. 205 MOULDINGS

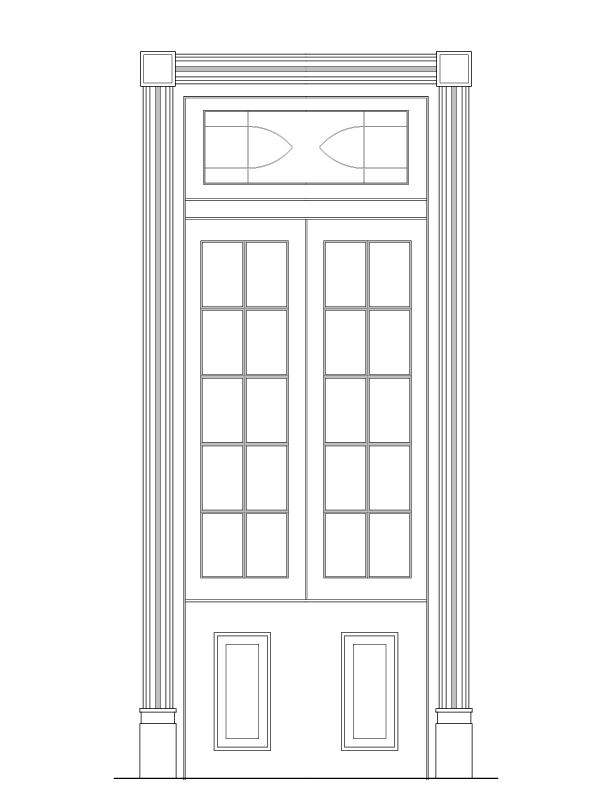

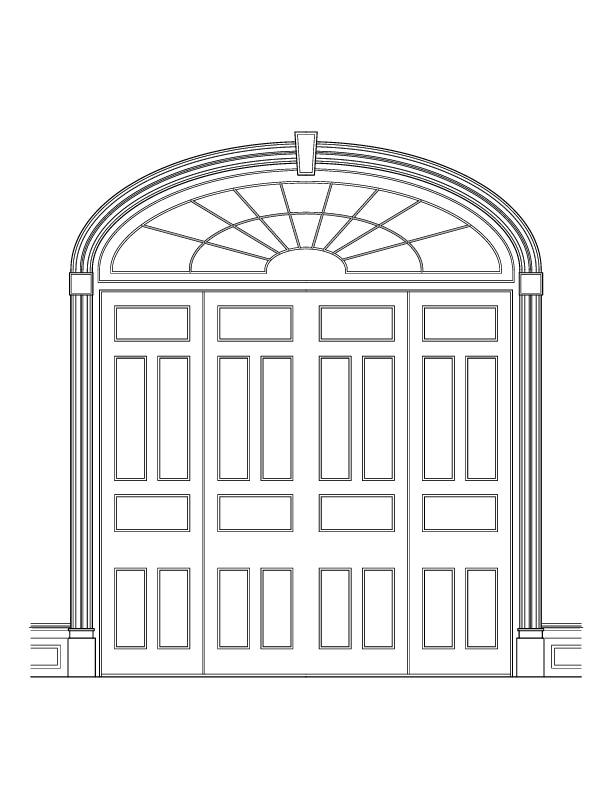

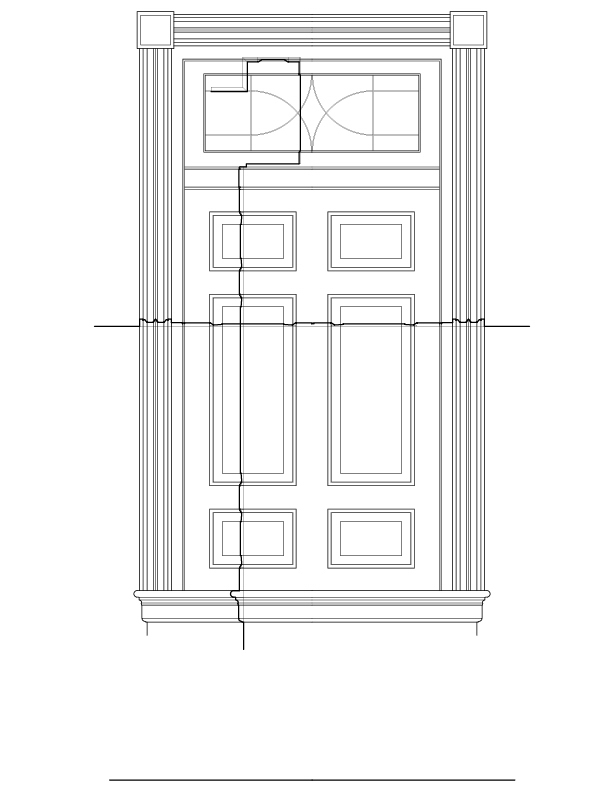

DOOR NO. 206 ROOM D ELEVATION
DOOR NO. 206 ROOM D ELEVATION

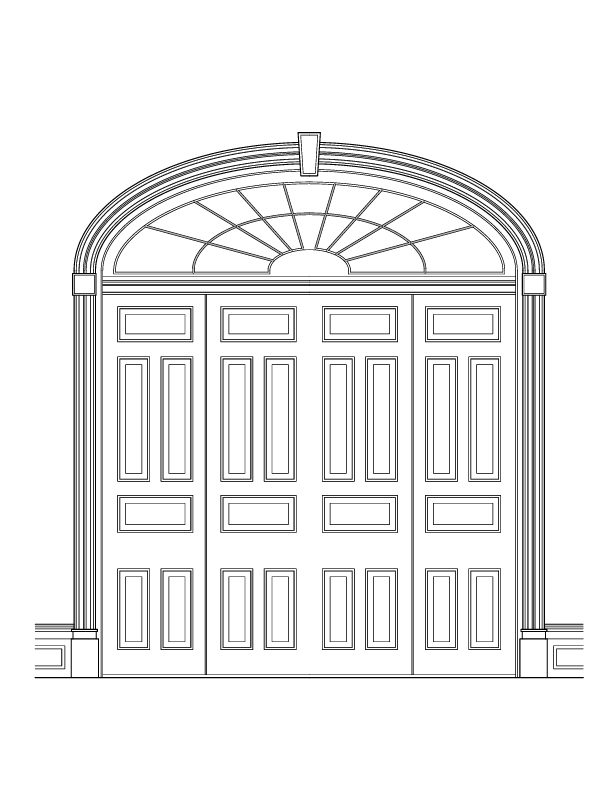

DOOR NO. 206 ROOM E ELEVATION
DOOR NO. 206 ROOM E ELEVATION

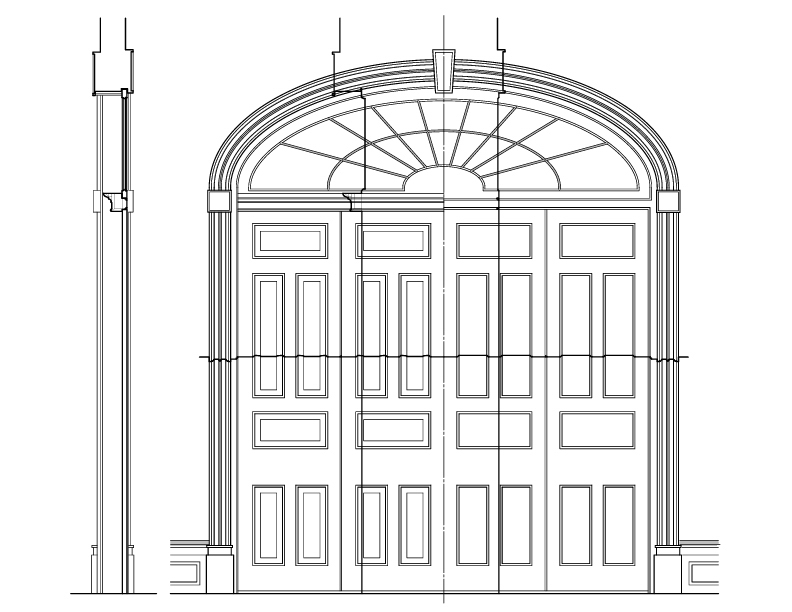

DOOR NO. 206 ELEVATION AND SECTION
DOOR NO. 206 ROOM MOULDINGS

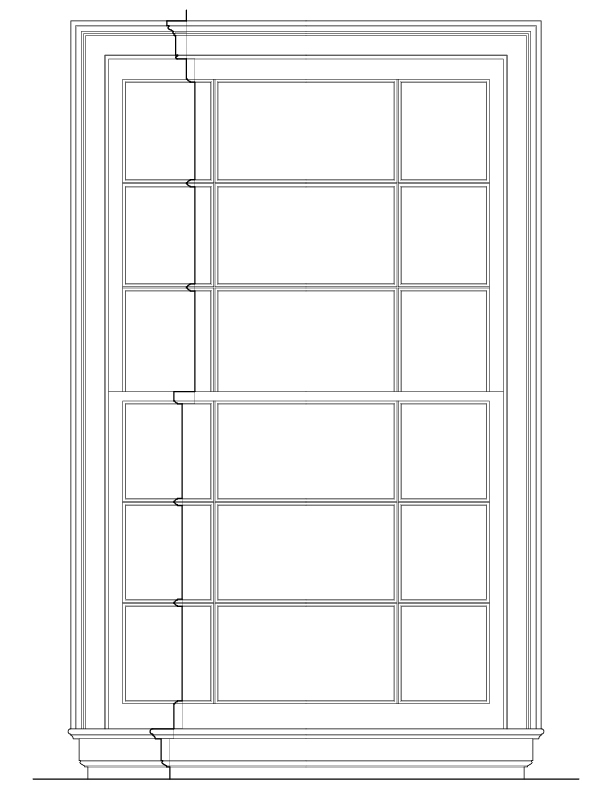

WINDOW NO. 301 EXTERIOR ELEVATION
WINDOW NO. 301 EXTERIOR ELEVATION
WINDOW NO. 301 INTERIOR ELEVATION
WINDOW NO. 301 INTERIOR ELEVATION

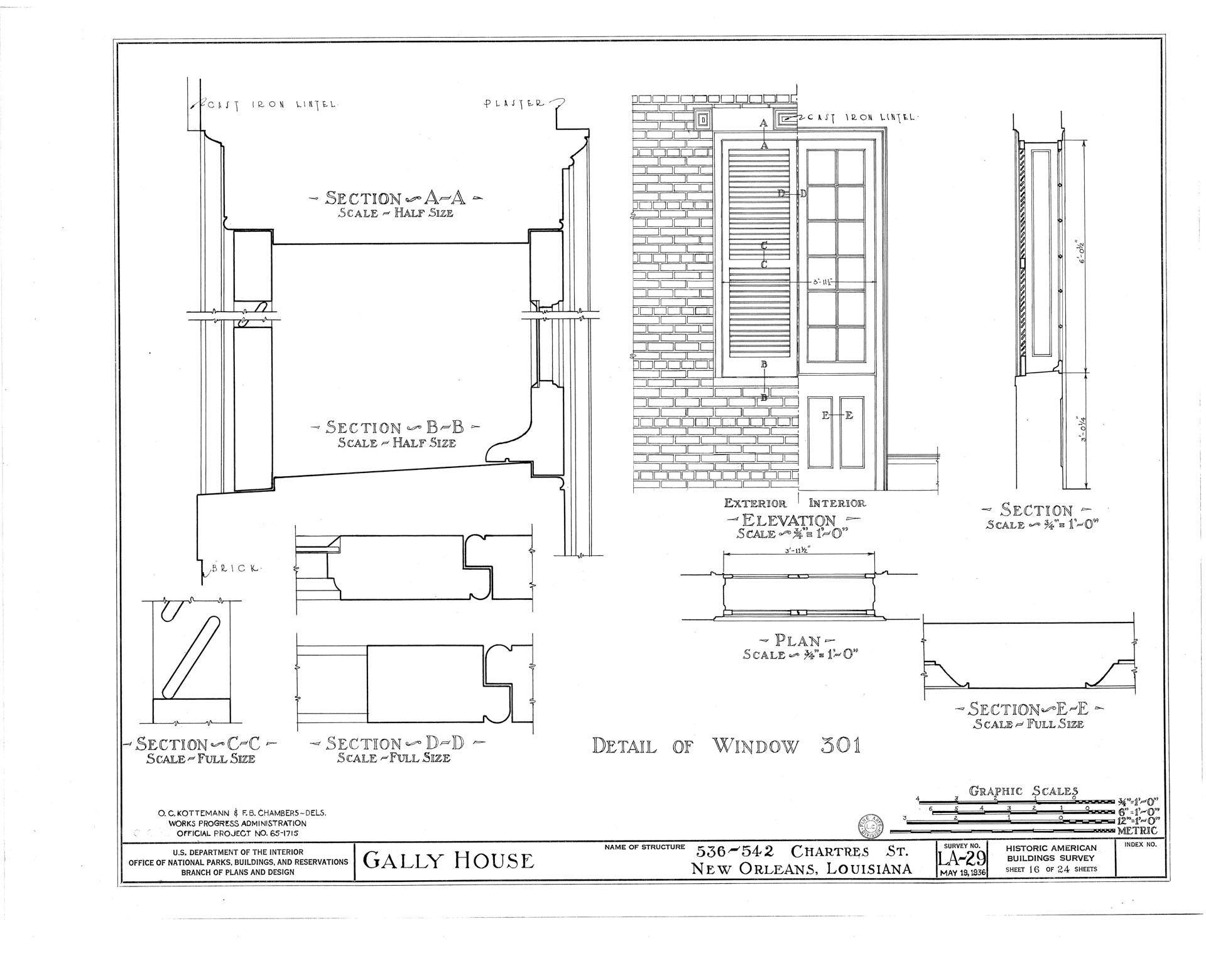

WINDOW NO. 301 ELEVATION AND SECTION
WINDOW NO. 301 MOULDINGS
WINDOW NO. 305 WINDOW SIDE ELEVATION
WINDOW NO. 305 WINDOW SIDE ELEVATION
WINDOW NO. 305 BLIND SIDE ELEVATION
WINDOW NO. 305 BLIND SIDE ELEVATION

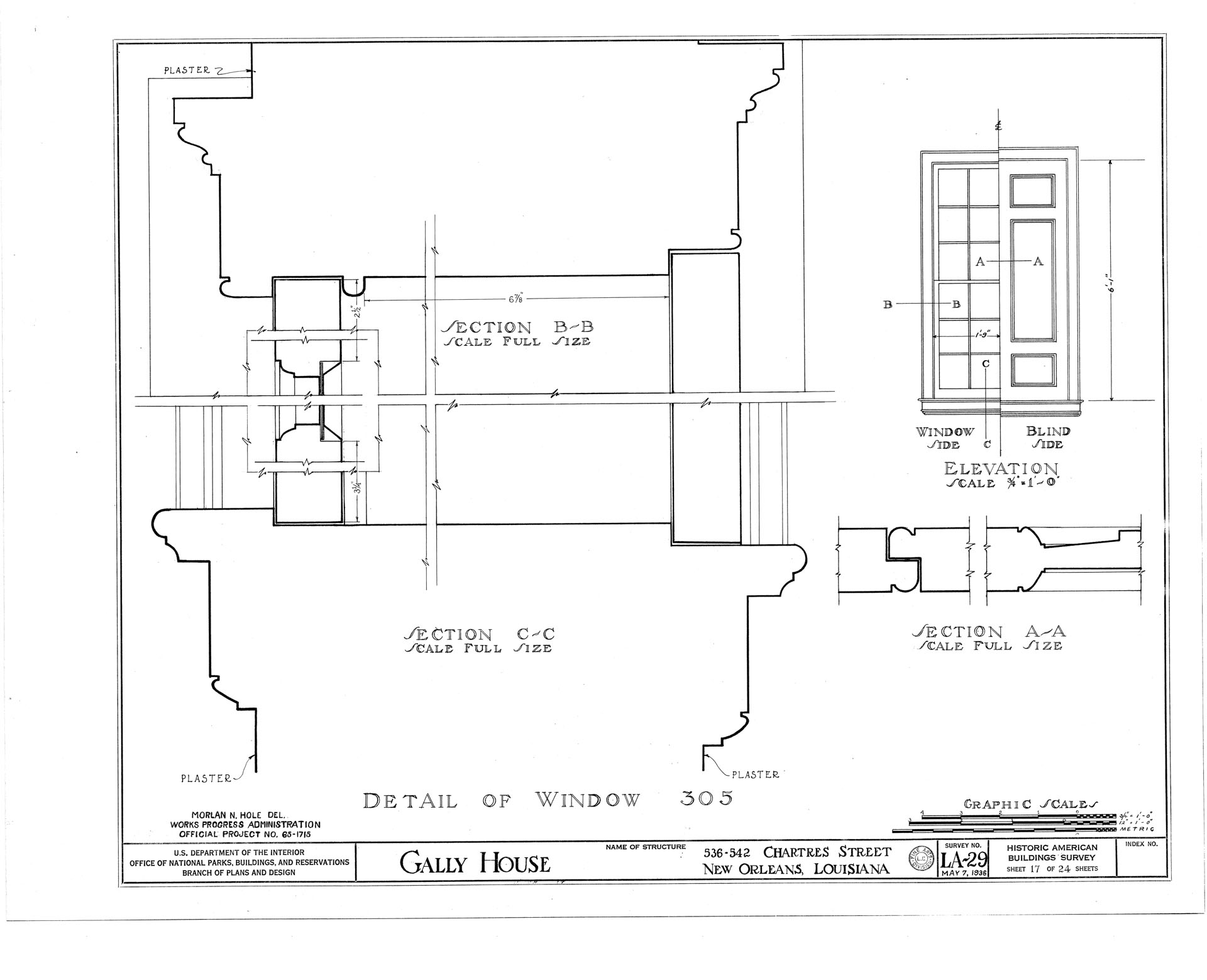

WINDOW NO. 305 ELEVATION AND SECTION
WINDOW NO. 305 MOULDINGS

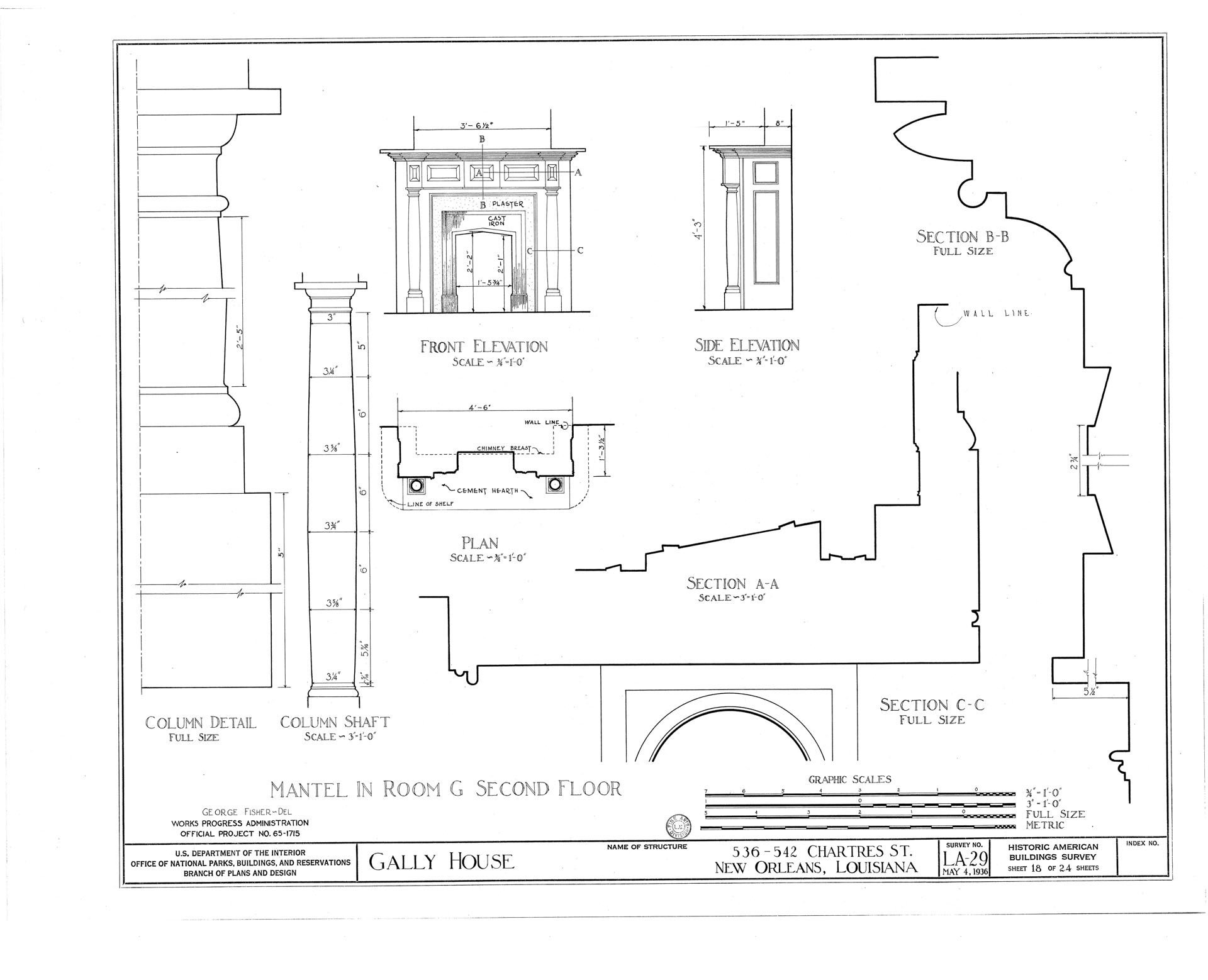

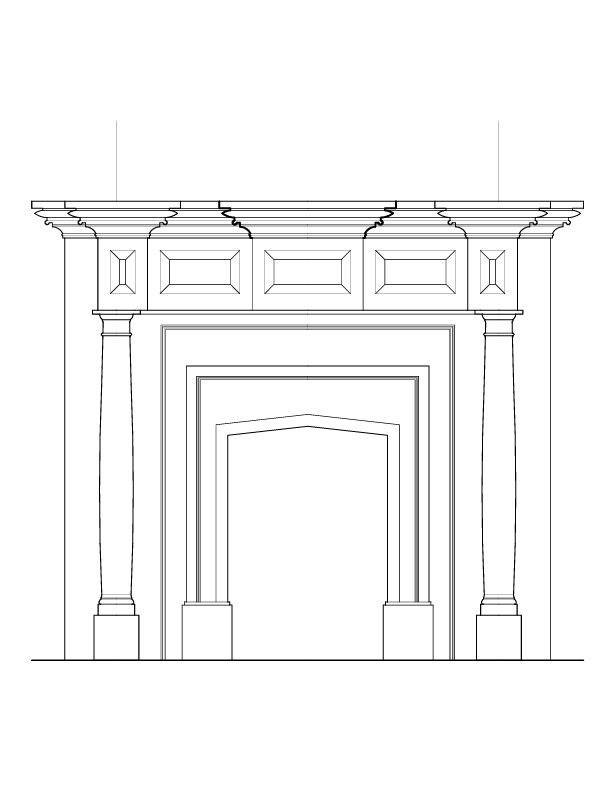

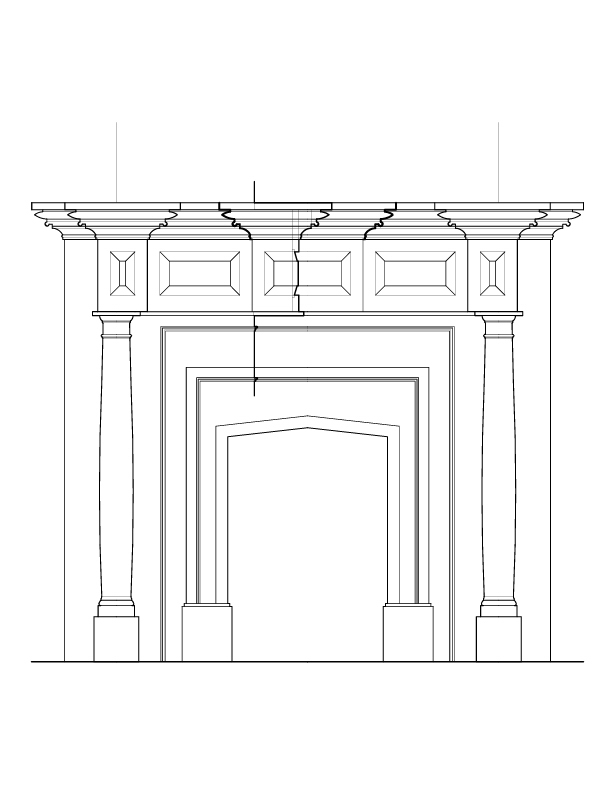

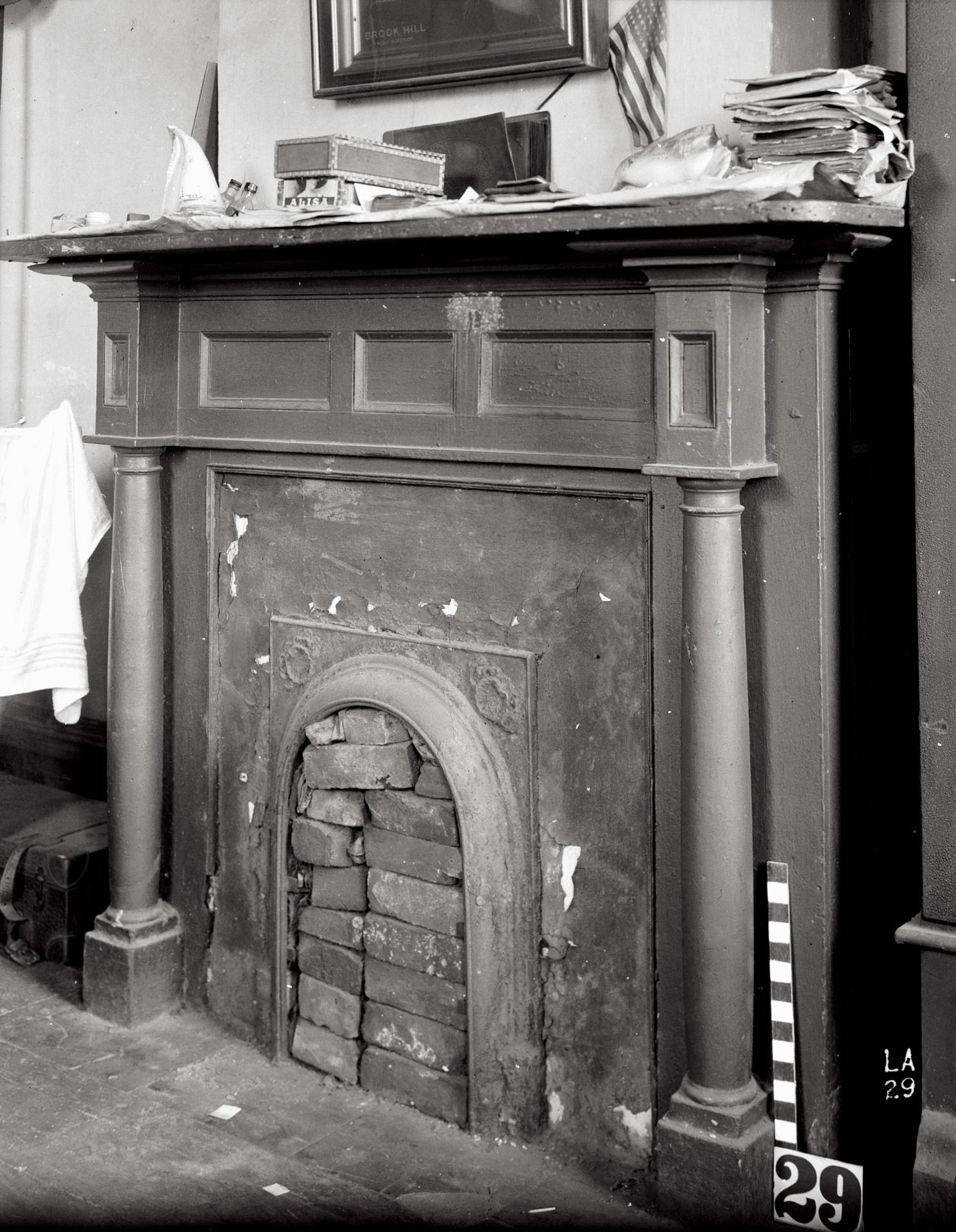

ROOM G MANTEL ELEVATION
ROOM G MANTEL ELEVATION

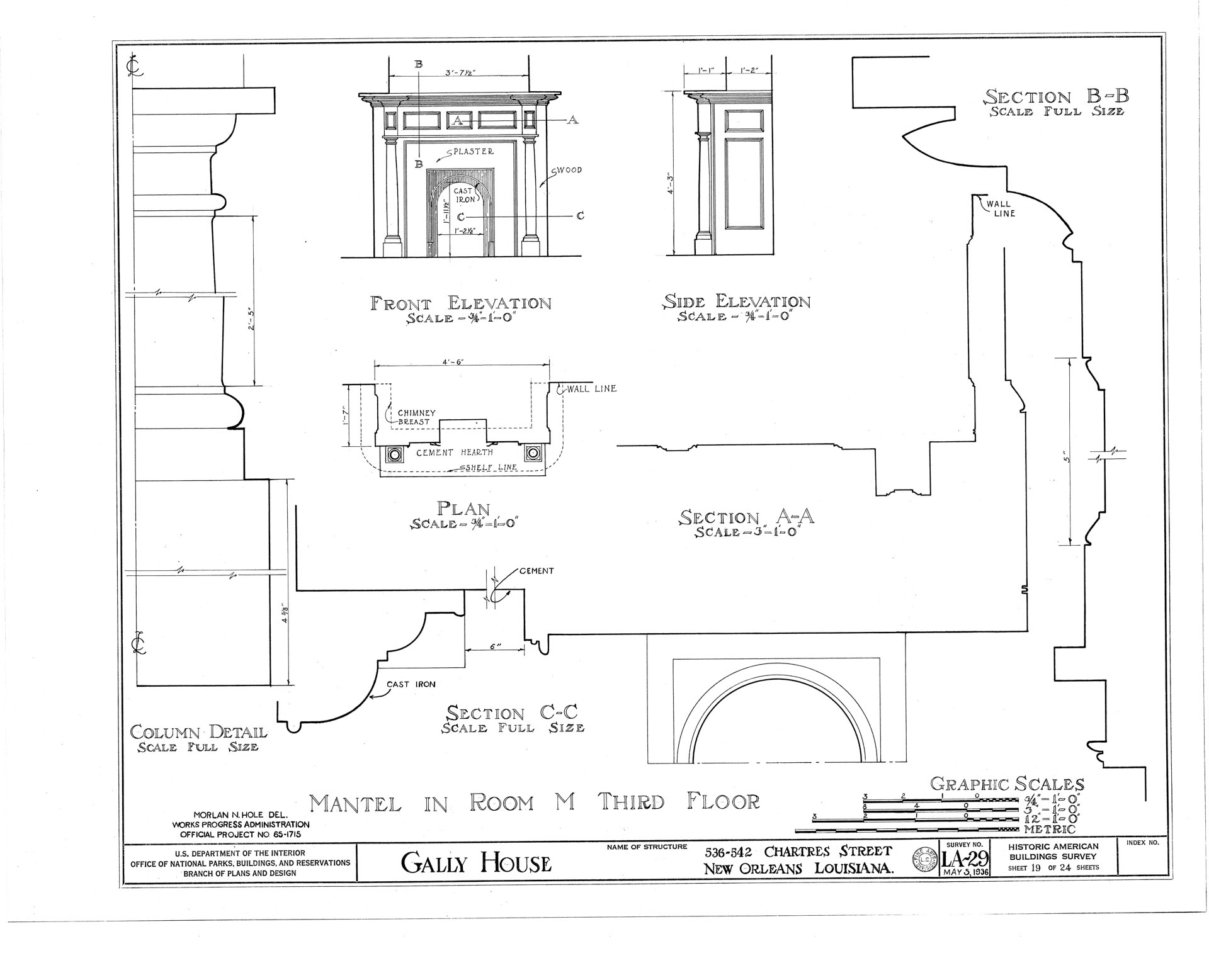

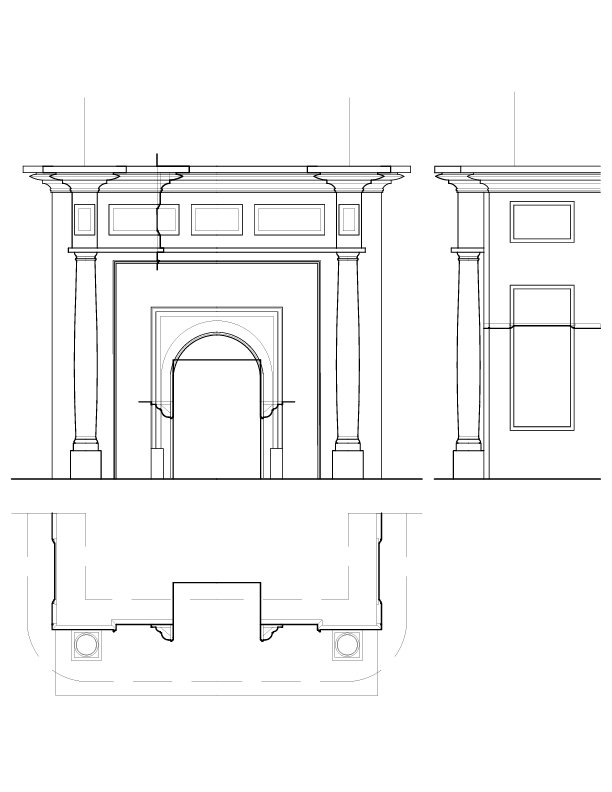

ROOM M MANTEL ELEVATION AND SECTION

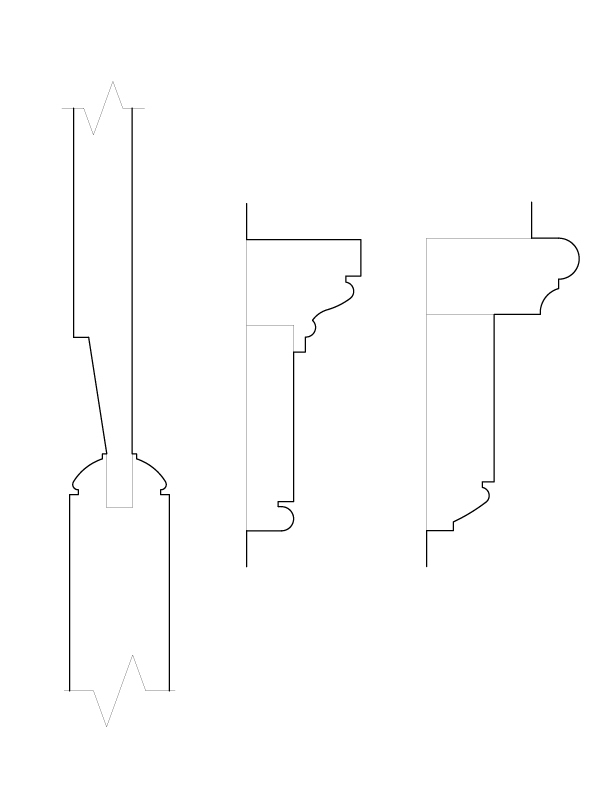

ROOM M MANTEL MOULDINGS

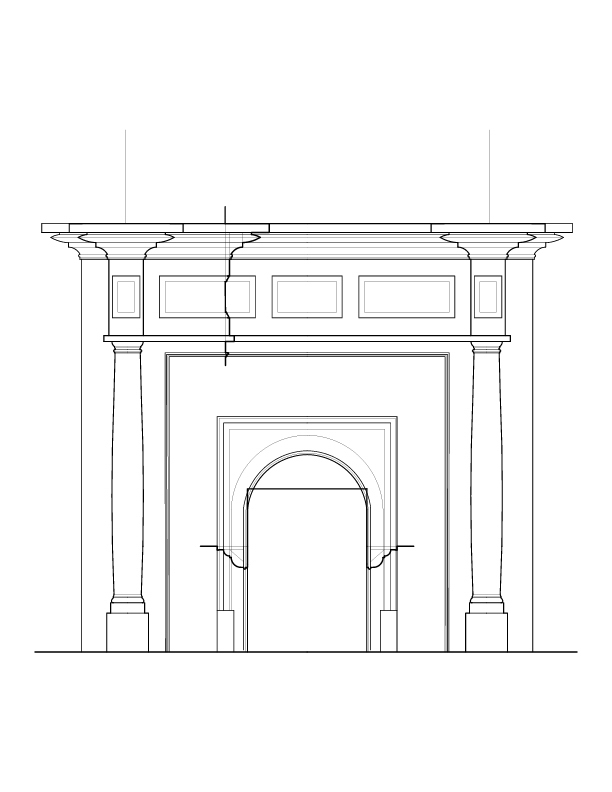

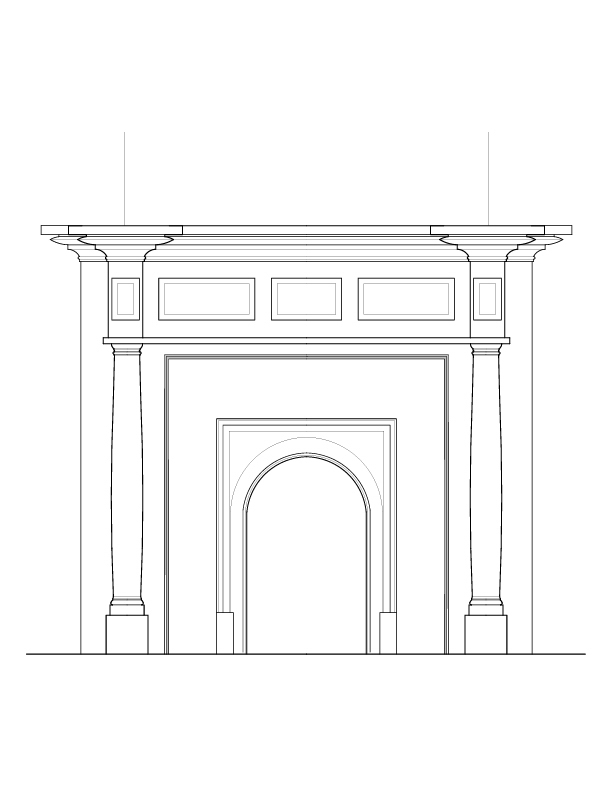

ROOM M MANTEL ELEVATION
ROOM M MANTEL ELEVATION

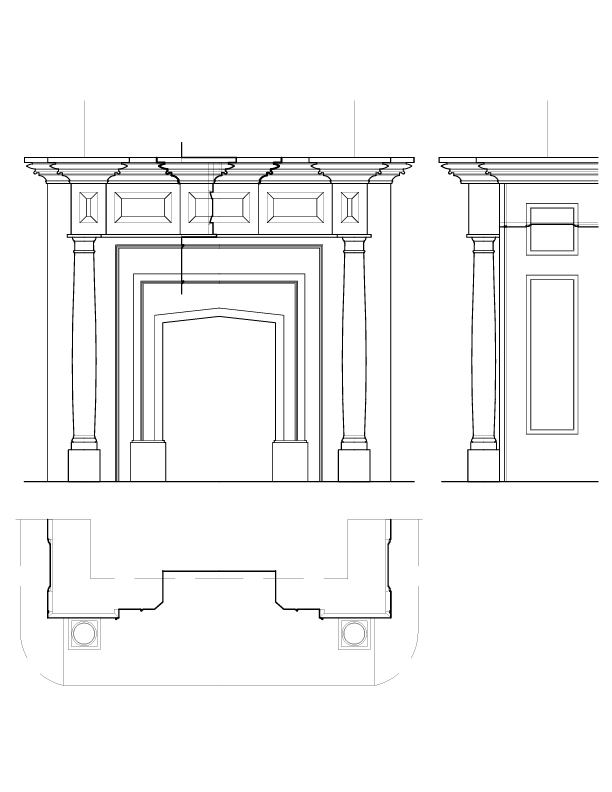

ROOM M MANTEL ELEVATION AND SECTION
ROOM M MANTEL MOULDINGS

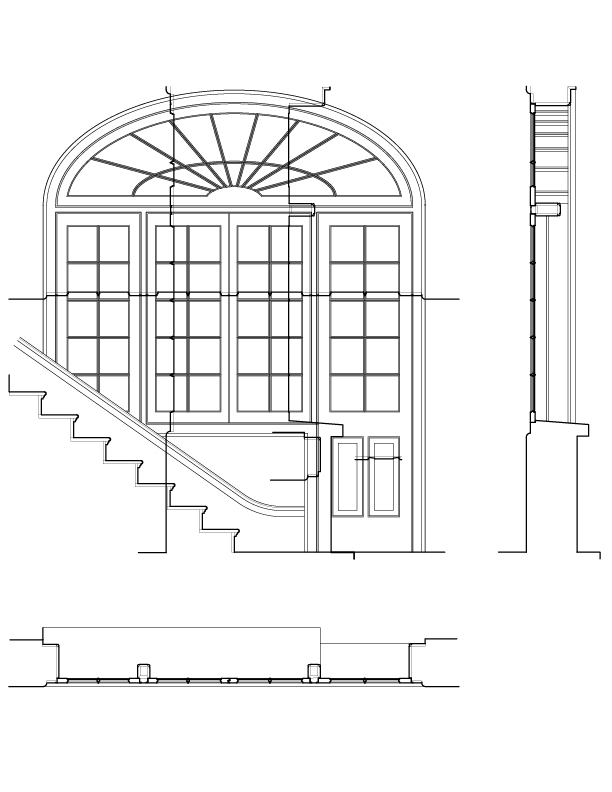

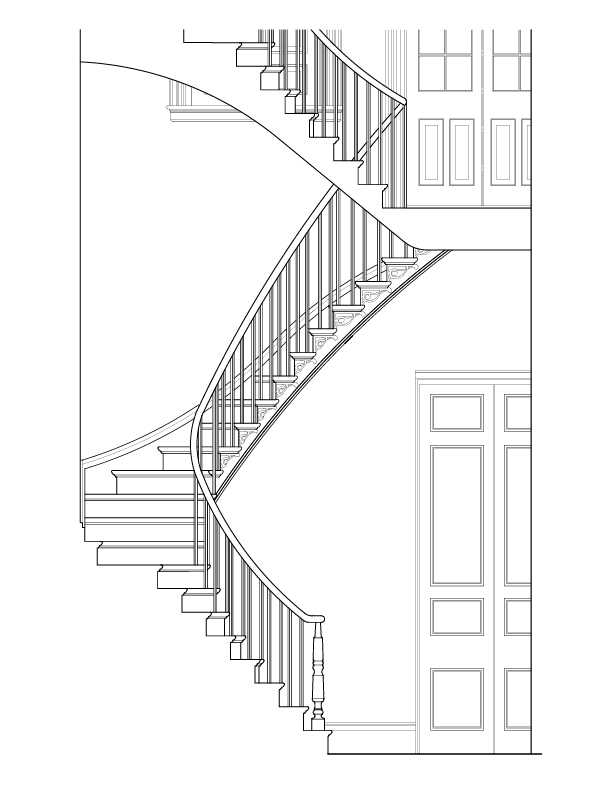

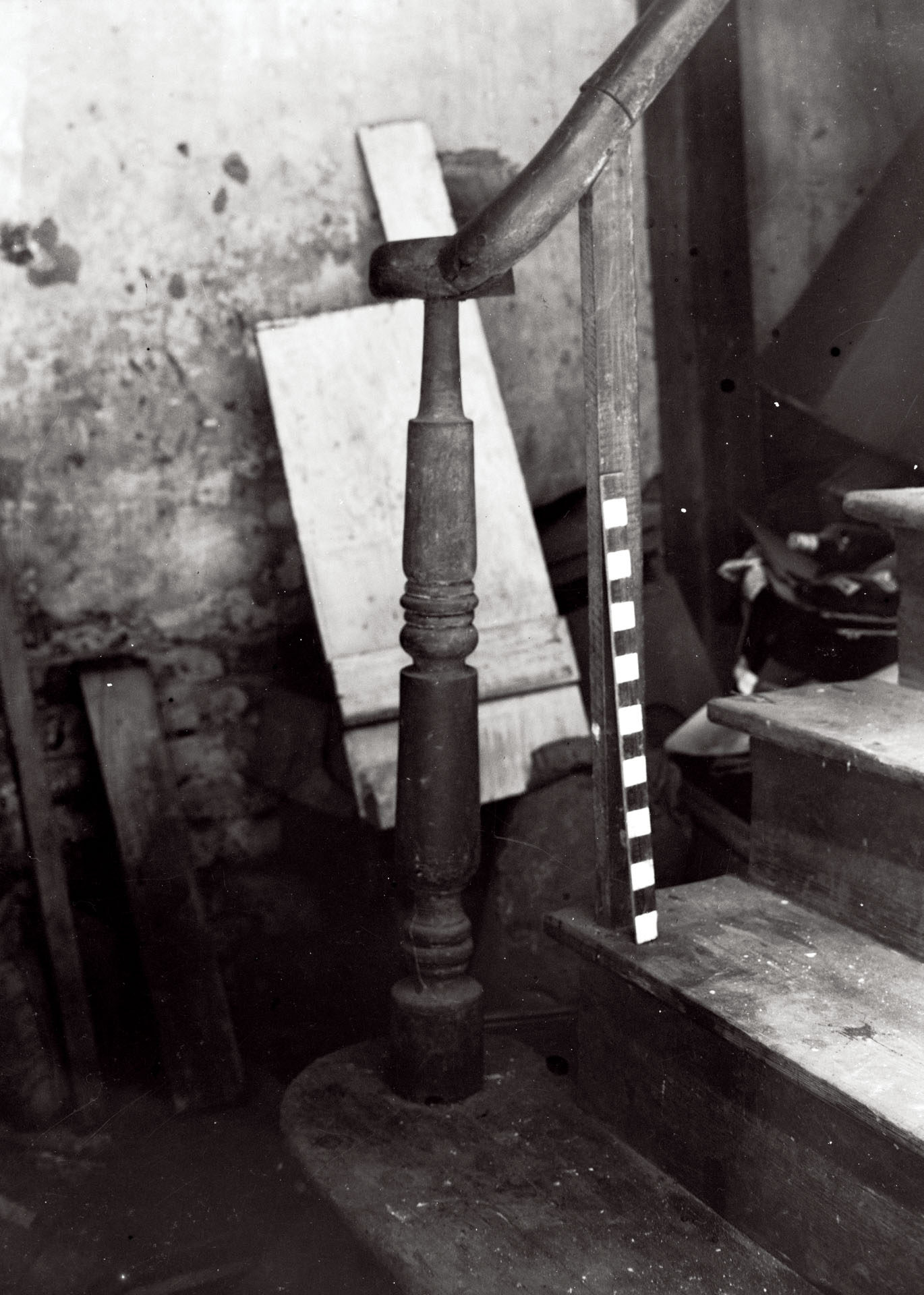

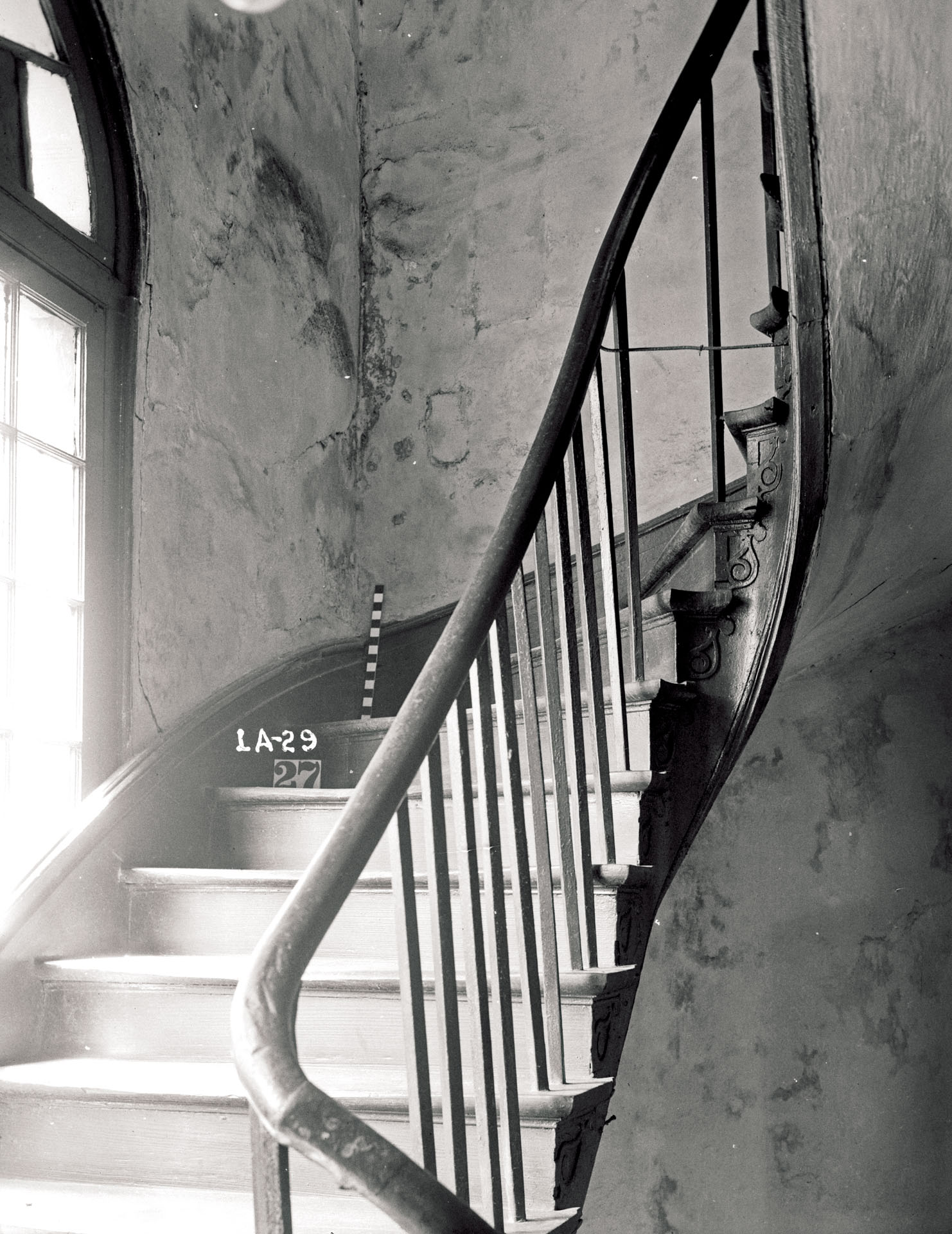

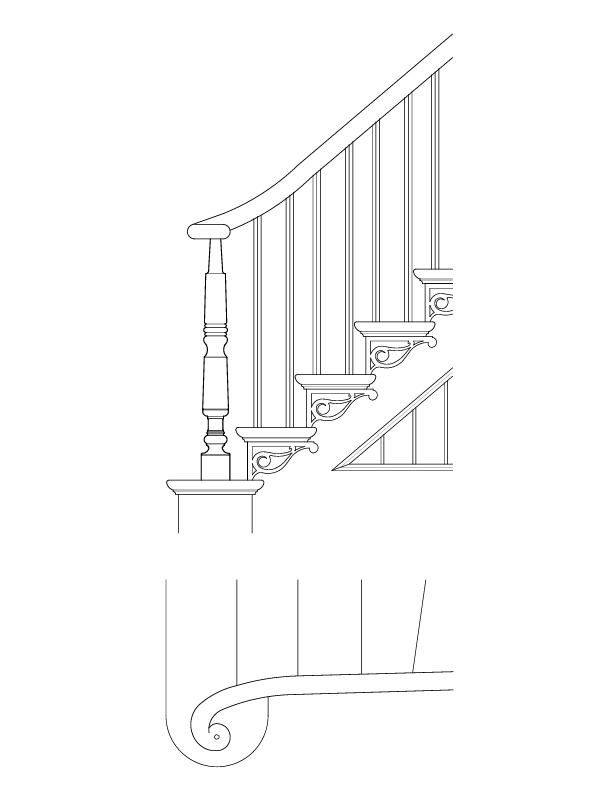

STAIRWAY ELEVATION
STAIRWAY ELEVATION

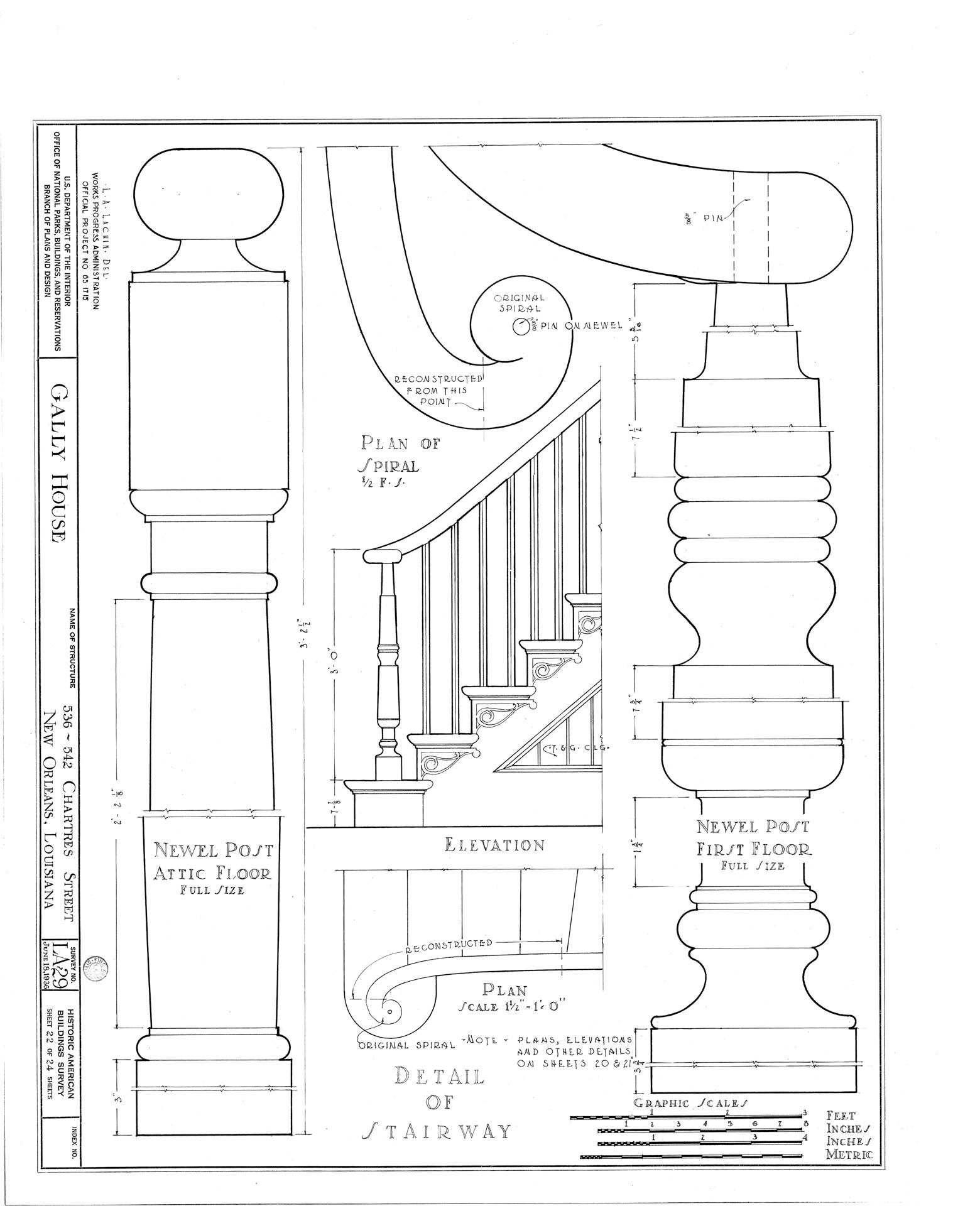

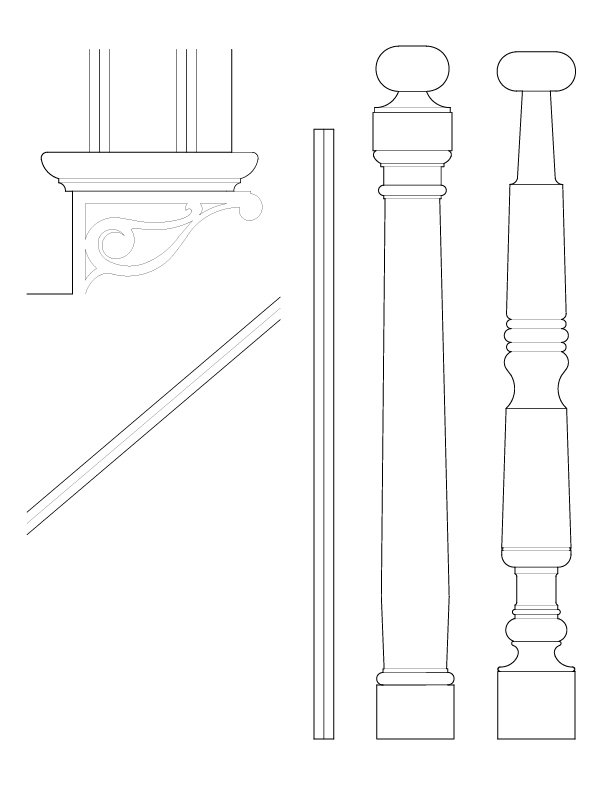

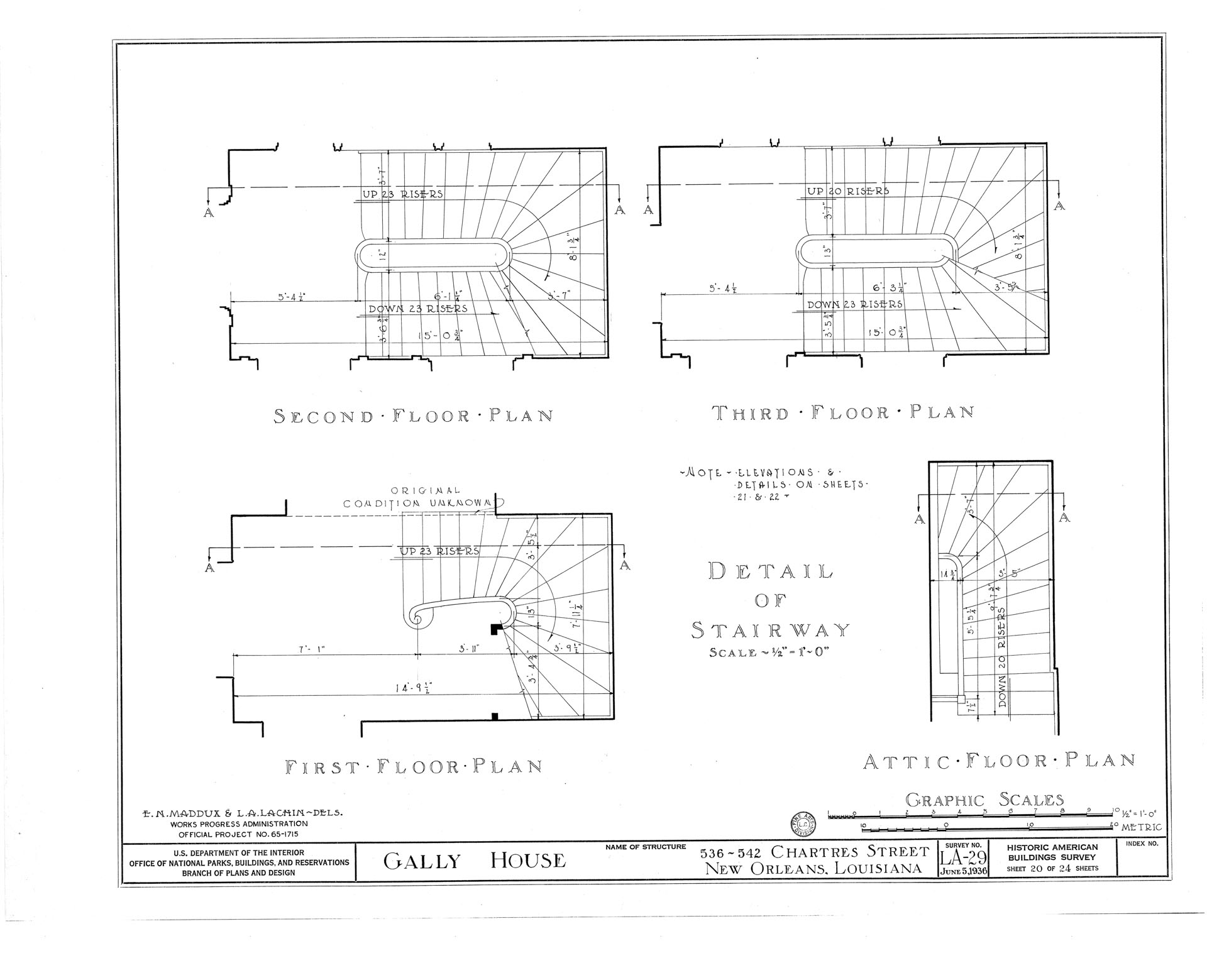

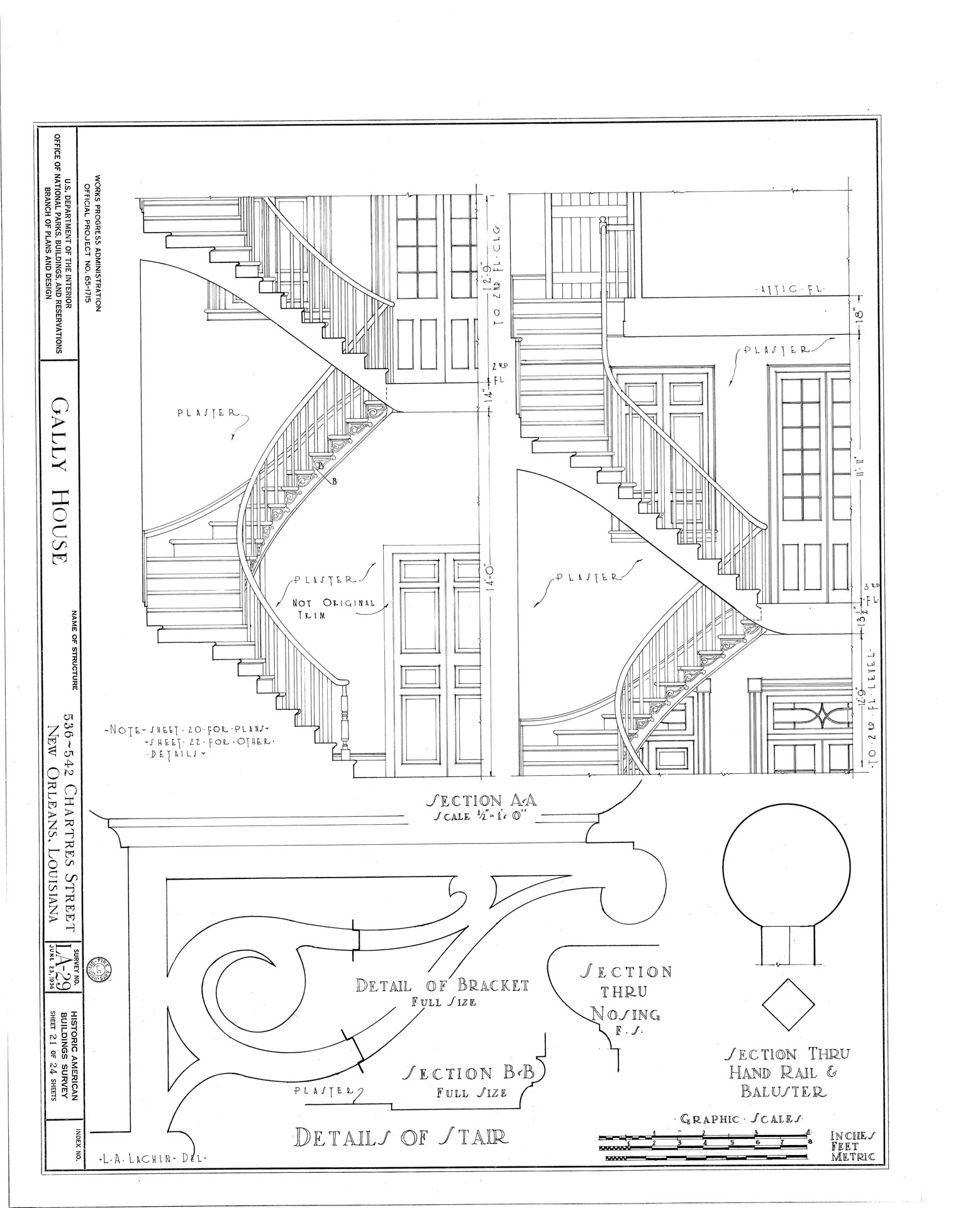

STAIRWAY DETAILS

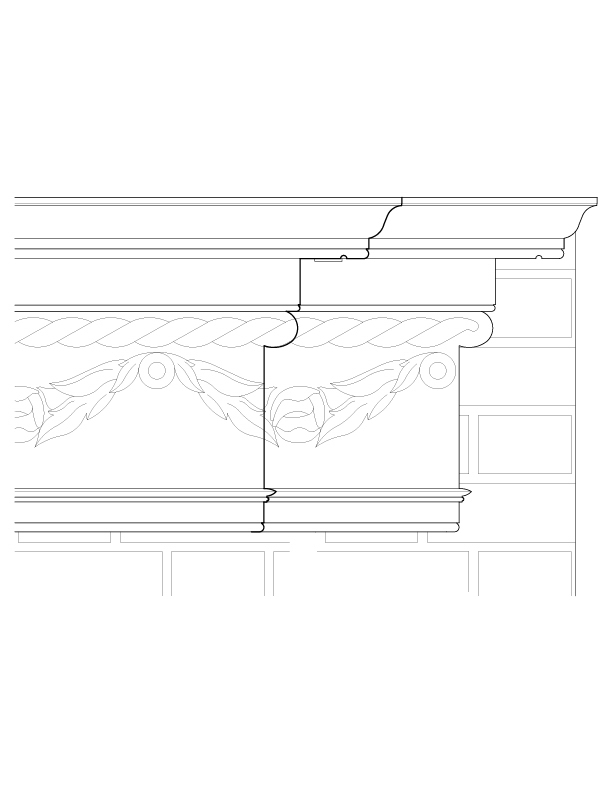

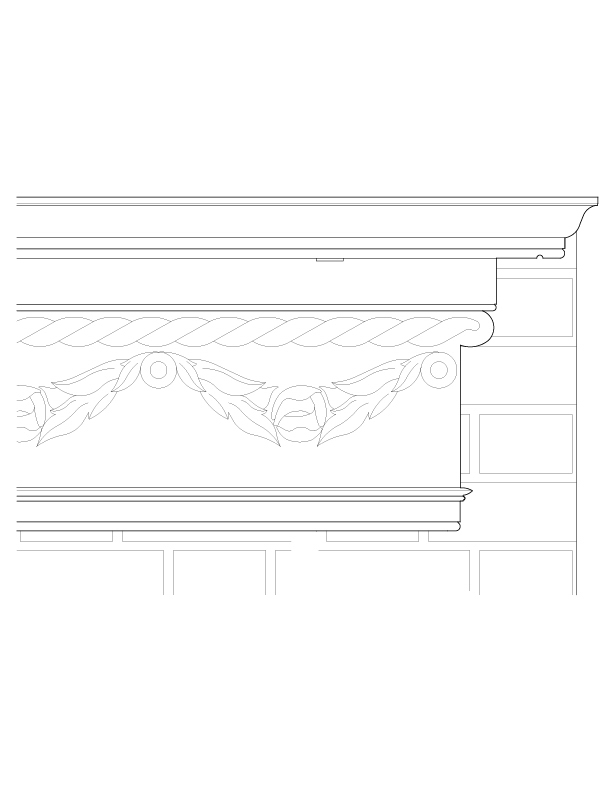

CORNICE ELEVATION
CORNICE ELEVATION

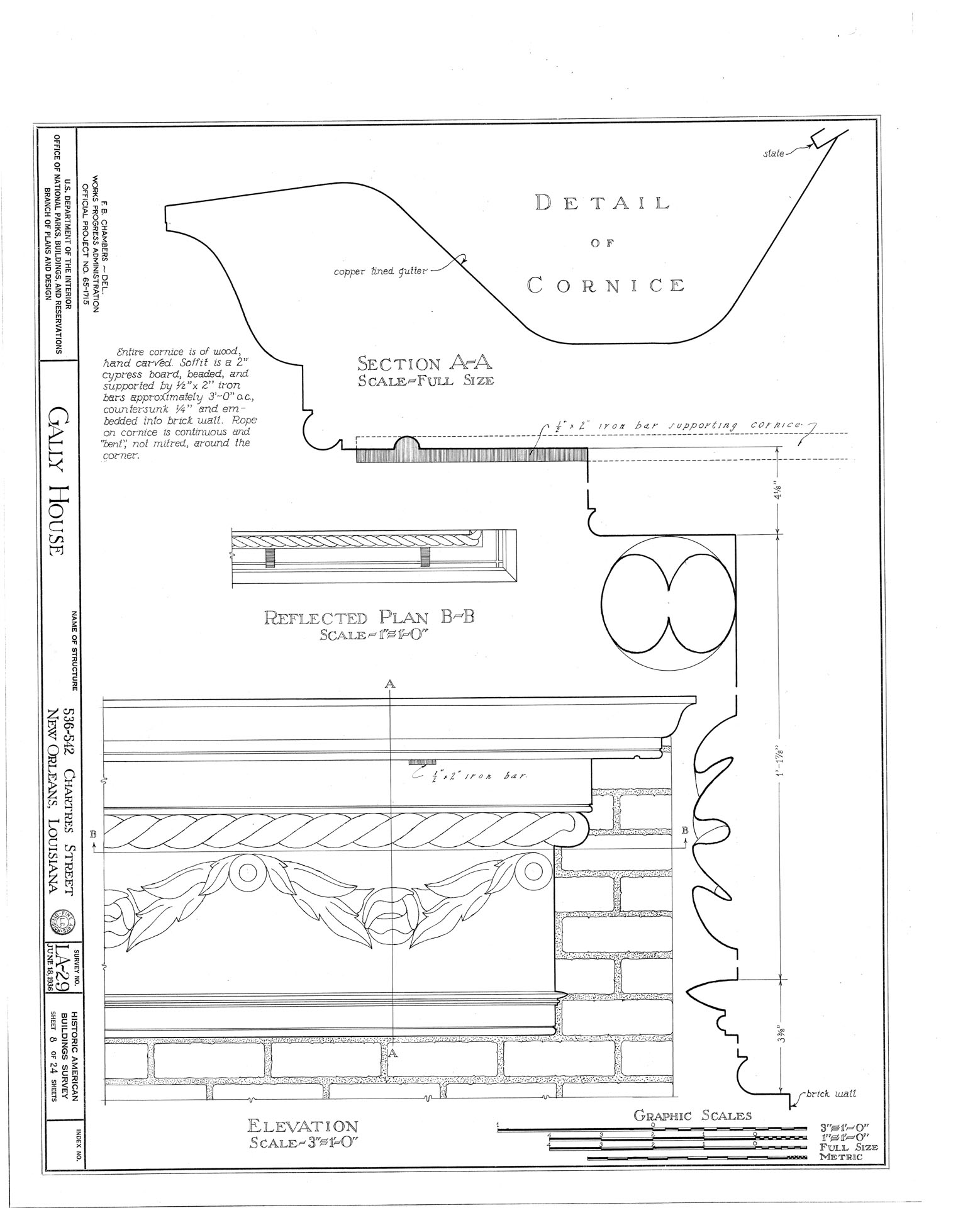

CORNICE ELEVATION AND REFLECTED PLAN

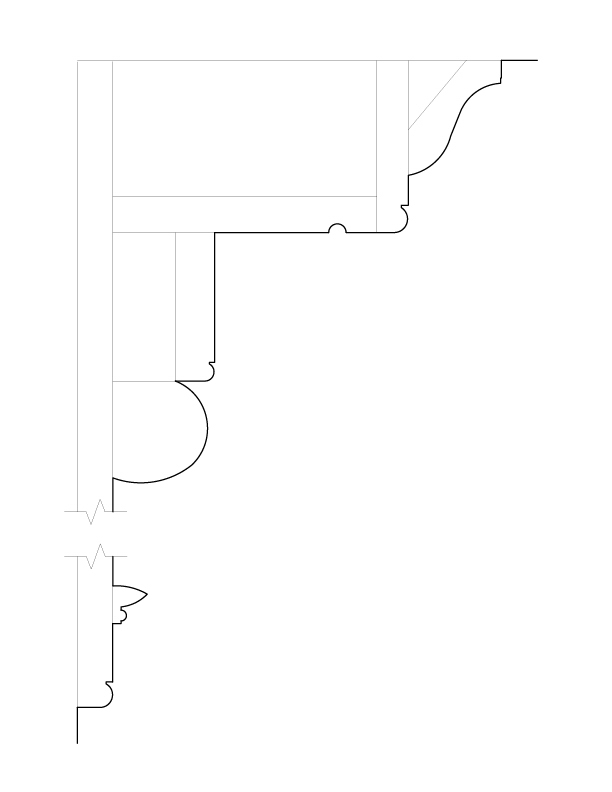

CORNICE MOULDING

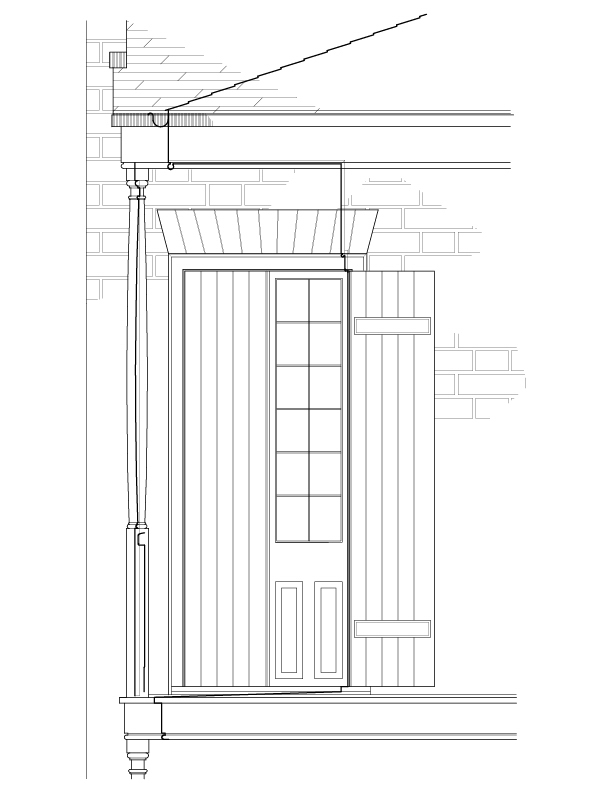

BALCONY ELEVATION
BALCONY ELEVATION
BALCONY ELEVATION AND SECTION
BALCONY MOULDINGS

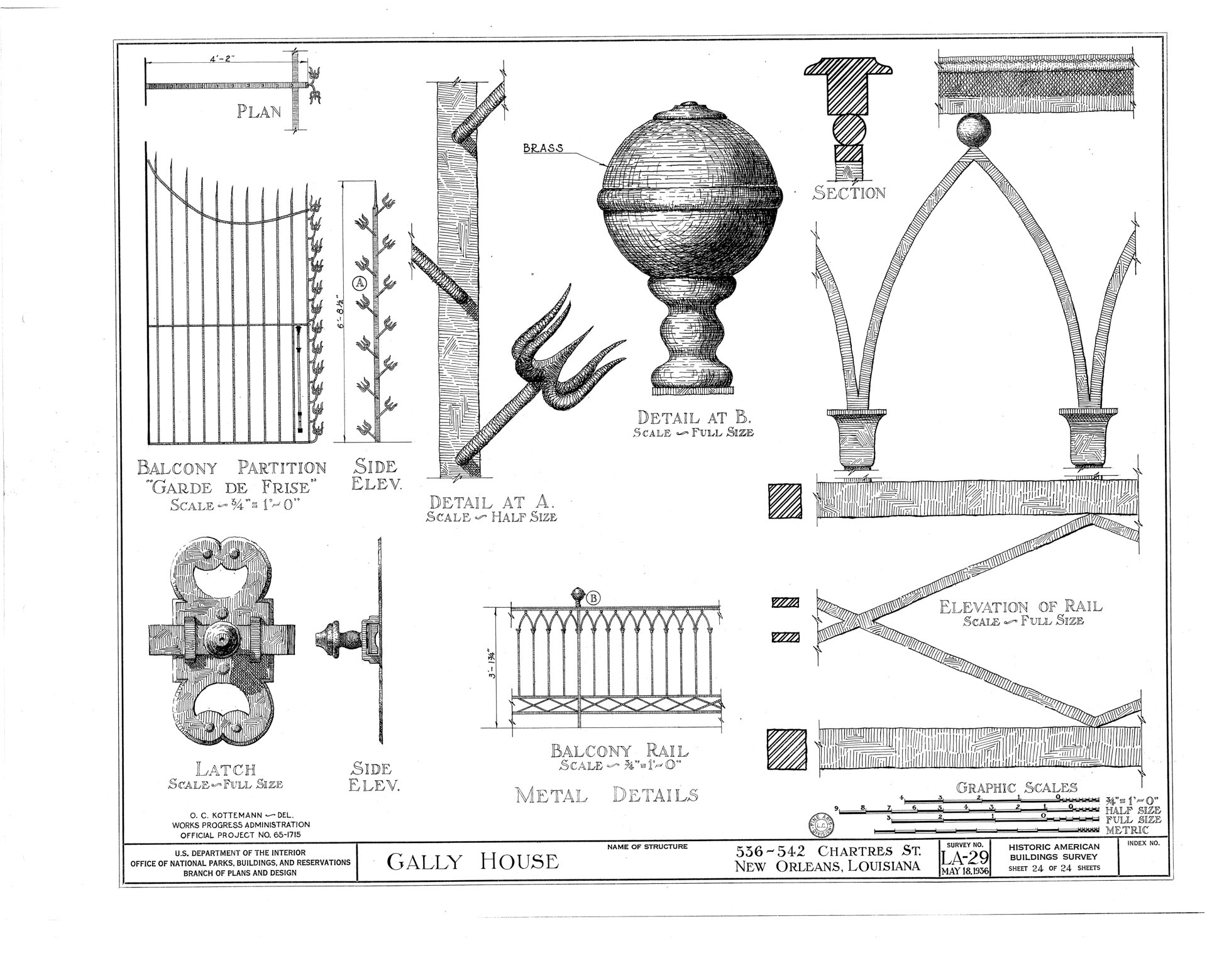

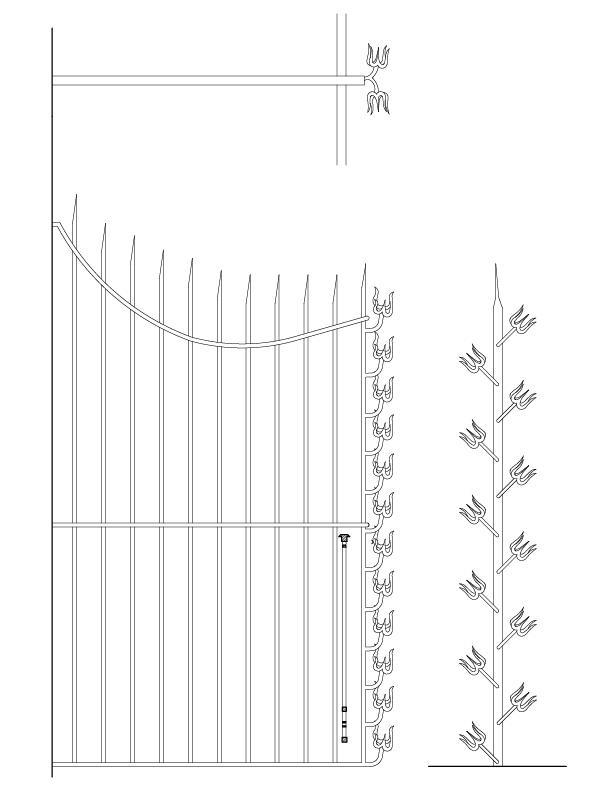

BALCONY PARTITION

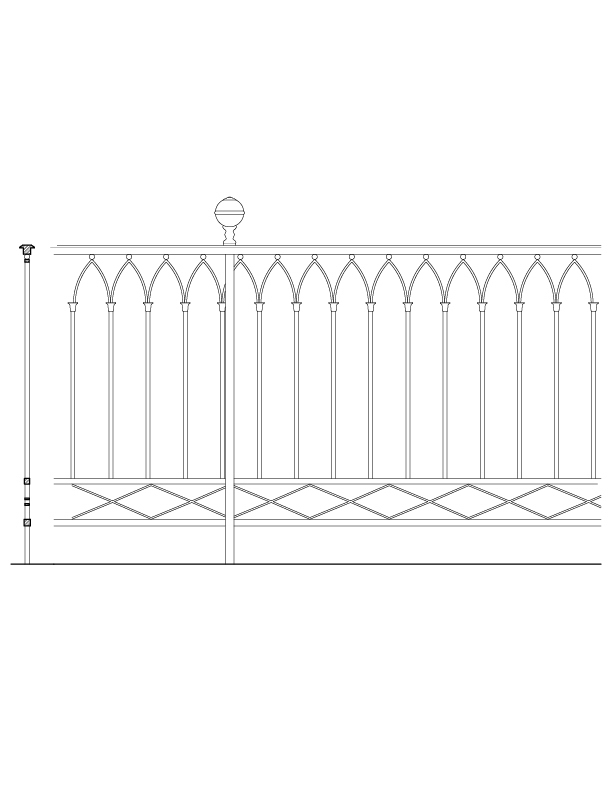

BALCONY RAIL
